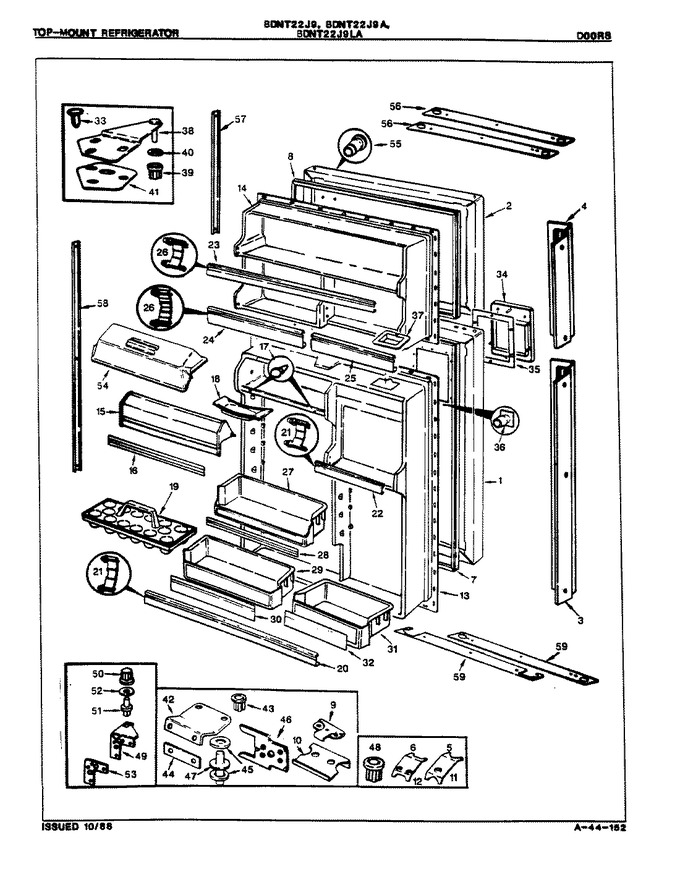

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	66995-1-AM		Panel, Outer Door		Appelez-nous	-
1	66995-2-AM		Panel, Outer Door		Appelez-nous	-
2	RA95056-1		Door Insulation Kit		Appelez-nous	-
2	66996-3-AM		Panel, Frz. Door (alm)		Appelez-nous	-
2	420051-900		Washer		Appelez-nous	-
2	66996-4-AM		Panel, Frz. Door (alm)		Appelez-nous	-
3	65275-4		Screw		Appelez-nous	-
3	66936-12		Door Handle		Appelez-nous	-
4	66936-11		Door Handle		Appelez-nous	-
5	56209-3		Clip, Stop Screw		Appelez-nous	-
6	60123-2		Clip, Stop Screw		Appelez-nous	-
7	66199-8		Gasket, Door		Appelez-nous	-
8	66199-7		Gasket, Door		Appelez-nous	-
9	9986-108		Screw		Appelez-nous	-
9	60030-2		Door Stop		Appelez-nous	-
10	60030-3		Door Stop		Appelez-nous	-
11	56209-3		Clip, Stop Screw		Appelez-nous	-
12	60123-2		Clip, Stop Screw		Appelez-nous	-
13	66527-3		Inner Panel		Appelez-nous	-
13	65275-5		Screw		Appelez-nous	-
14	65937-9		Liner, Door		Appelez-nous	-
15	66184-440		Door, Dairy		Appelez-nous	-
18	29936-2		Tray, Butter		Appelez-nous	-
19	60066-1		Tray, Egg		Appelez-nous	-
20	60080-51		Trim		Appelez-nous	-
21	65246-1		Retainer				$ 5.04
22	65151-174		Trim, Door Shelf		Appelez-nous	-
23	65151-175		Trim, Door Shelf		Appelez-nous	-
24	65151-176		Trim, Door Shelf		Appelez-nous	-
25	WP61003045		Trim, Door Shelf   (Replaces: 65151-177)				$ 129.55
26	WP65245-1		Retainer, Shelf Trim   (Replaces: 65245-1)				$ 9.39
27	60037-40		Door Shelf		Appelez-nous	-
28	68130-7		Insert		Appelez-nous	-
29	60037-39		Door Shelf		Appelez-nous	-
30	68130-11		Insert		Appelez-nous	-
31	60037-35		Door Shelf		Appelez-nous	-
32	68130-12		Insert		Appelez-nous	-
33	56144-13		Plug Button, Upper Hinge (wht)		Appelez-nous	-
33	56144-9		Plug Button, Hinge Screw (alm)		Appelez-nous	-
34	60482-52		Escutcheon		Appelez-nous	-
35	63057-1		Seal, Escutcheon		Appelez-nous	-
36	65211-2		Retainer, Escutcheon		Appelez-nous	-
37	66775-6		Collar		Appelez-nous	-
37	60319-3		Anchor		Appelez-nous	-
37	402038-1		Screw		Appelez-nous	-
38	WP3-24838-048		Screw   (Replaces: 9986-87)				$ 7.00
38	53709-18		Door Hinge, Upper		Appelez-nous	-
39	66036-1		Bushing,top/center Hinge		Appelez-nous	-
40	WP52185-1		Washer   (Replaces: 52185-1)			Immediately	$ 9.47
41	65031-1		Shim, Upper Hinge		Appelez-nous	-
42	60031-2		Door Hinge, Center		Appelez-nous	-
42	WP3-24838-048		Screw   (Replaces: 9986-107)				$ 7.00
43	66036-1		Bushing,top/center Hinge		Appelez-nous	-
44	60034-1		Spacer, Center Hinge		Appelez-nous	-
45	WP52185-1		Washer   (Replaces: 52185-1)			Immediately	$ 9.47
46	60622-1		Tapping Plate		Appelez-nous	-
47	60035-4		Pin, Center Hinge		Appelez-nous	-
48	66036-1		Bushing,top/center Hinge		Appelez-nous	-
49	403062-5		Screw		Appelez-nous	-
49	60630-3		Hinge		Appelez-nous	-
50	66037-1		Hinge Bushing		Appelez-nous	-
51	65418-1		Pin		Appelez-nous	-
52	54233-4		Spacer				$ 7.70
53	60626-1		Shim, Lower Hinge		Appelez-nous	-
53	65003-AM		Cover, Upper Hinge		Appelez-nous	-
53	65003-6		Cover, Upper Hinge (wht)		Appelez-nous	-
54	66515-4		Egg Cover		Appelez-nous	-
55	65211-1		Retainer, Nameplate		Appelez-nous	-
56	66937-1		Perimeter Trim		Appelez-nous	-
57	66937-2		Perimeter Trim		Appelez-nous	-
58	66937-3		Perimeter Trim		Appelez-nous	-
59	66937-4		Perimeter Trim		Appelez-nous	-
59	66937-6		Trim		Appelez-nous	-
59	60319-3		Anchor		Appelez-nous	-
