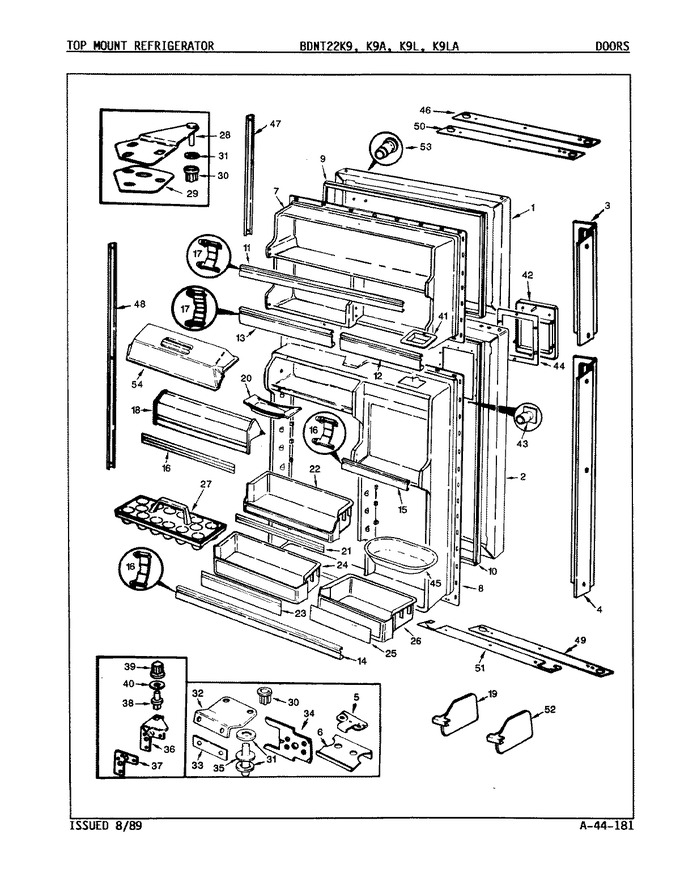

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	66996-3-AM		Panel, Frz. Door (alm)		Appelez-nous	-
2	495036-900		Plug Button		Appelez-nous	-
2	66995-1-AM		Panel, Outer Door		Appelez-nous	-
2	RA95056-1		Door Insulation Kit		Appelez-nous	-
3	66936-15		Handle		Appelez-nous	-
4	60123-2		Clip, Stop Screw		Appelez-nous	-
4	66936-16		Handle		Appelez-nous	-
4	65275-4		Screw		Appelez-nous	-
5	60030-4		Door Stop		Appelez-nous	-
6	60030-5		Door Stop, F.f. Door		Appelez-nous	-
6	9986-108		Screw		Appelez-nous	-
7	65937-9		Liner, Door		Appelez-nous	-
8	66527-5		Liner, F.f. Door		Appelez-nous	-
8	65275-5		Screw		Appelez-nous	-
9	66199-7		Gasket, Door		Appelez-nous	-
10	66199-8		Gasket, Door		Appelez-nous	-
11	WP61003045		Trim, Frz Dr Shelf   (Replaces: 68375-13)				$ 129.55
12	WP61003045		Trim, Shelf Door   (Replaces: 68375-14)				$ 129.55
13	WP61003045		Trim, Door   (Replaces: 68375-8)				$ 129.55
14	68376-9		Trim, Door Shelf		Appelez-nous	-
15	WP61003045		Trim, Shelf Door   (Replaces: 68375-15)				$ 129.55
16	WP65245-1		Retainer, Shelf Trim   (Replaces: 65245-1)				$ 9.39
17	65246-1		Retainer				$ 5.04
18	66184-363		Door, Dairy (large)		Appelez-nous	-
19	66645-6		Organizer Package		Appelez-nous	-
20	29936-2		Tray, Butter		Appelez-nous	-
21	68130-52		Insert		Appelez-nous	-
22	60037-39		Door Shelf		Appelez-nous	-
23	68130-56		Insert		Appelez-nous	-
24	60037-40		Door Shelf		Appelez-nous	-
25	68130-57		Insert, Pickoff		Appelez-nous	-
26	60037-35		Door Shelf		Appelez-nous	-
27	60066-1		Tray, Egg		Appelez-nous	-
28	53709-18		Door Hinge, Upper		Appelez-nous	-
29	65031-1		Shim, Upper Hinge		Appelez-nous	-
30	66036-1		Bushing,top/center Hinge		Appelez-nous	-
31	56144-6		Plug		Appelez-nous	-
31	WP52185-1		Washer   (Replaces: 52185-1)			Immediately	$ 9.47
31	WP3-24838-048		Screw   (Replaces: 9986-87)				$ 7.00
32	60031-2		Door Hinge, Center		Appelez-nous	-
33	60034-1		Spacer, Center Hinge		Appelez-nous	-
34	60622-1		Tapping Plate		Appelez-nous	-
34	WP3-24838-048		Screw   (Replaces: 9986-107)				$ 7.00
35	60035-4		Pin, Center Hinge		Appelez-nous	-
36	403062-5		Screw		Appelez-nous	-
36	60630-3		Hinge		Appelez-nous	-
37	60626-1		Shim, Lower Hinge		Appelez-nous	-
38	65418-1		Pin		Appelez-nous	-
39	66037-1		Hinge Bushing		Appelez-nous	-
40	54233-4		Spacer				$ 7.70
41	402038-1		Screw		Appelez-nous	-
41	66775-6		Collar		Appelez-nous	-
42	60482-66		Escutcheon		Appelez-nous	-
43	65211-2		Retainer, Escutcheon		Appelez-nous	-
44	63057-1		Seal, Escutcheon		Appelez-nous	-
45	68426-1		Dish, Microwave		Appelez-nous	-
46	66937-1		Perimeter Trim		Appelez-nous	-
47	66937-2		Perimeter Trim		Appelez-nous	-
48	66937-3		Perimeter Trim		Appelez-nous	-
49	66937-4		Perimeter Trim		Appelez-nous	-
51	400015-12		Screw		Appelez-nous	-
52	64097-11		Organizer, Shelf		Appelez-nous	-
52	60319-3		Anchor		Appelez-nous	-
52	9986-117		Screw		Appelez-nous	-
53	68381-1		Retainer, Nameplate Bezel		Appelez-nous	-
