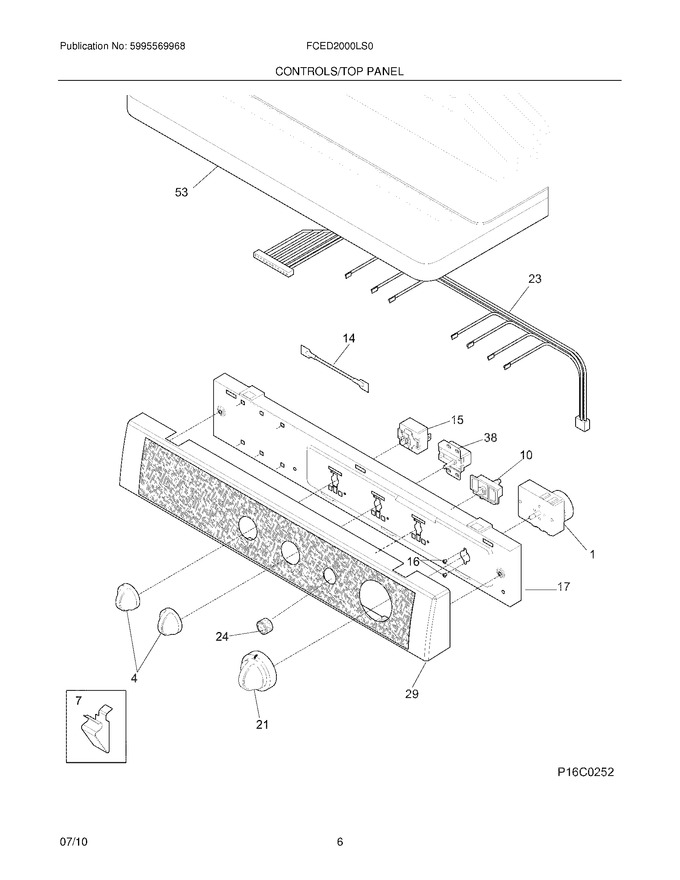

07 - Controls/top Panel
09 - Motor
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 4 | 131965300 | Knob,rotary ,white/gray |
|
Immediately | $ 53.15 | ||||
| 7 | 3205821 | Clip,top-to-front |
|
Immediately | $ 35.44 | ||||
| 16 | 134034300 | Screw,pan Hd Phillips ,8-18b X 0.250 |
|
- | |||||
| 17 | 134064501 | Bracket,control Mtg. |
|
$ 76.13 | |||||
| 21 | 131264905 | Knob,timer ,white/cranberry ,with Indicator |
|
$ 44.10 | |||||
| 24 | 131111501 | Button,start Switch ,white ,push Type |
|
$ 13.79 | |||||
| 29 | 131666991 | Console,frame ,white ,w/trim |
|
- | |||||
| 53 | 134086812 | Panel,dryer Top ,white ,stackable |
|
$ 336.42 | |||||
| F1 | 131719100 | Timer-dryer |
|
Immediately | $ 269.37 | ||||
| F10 | 131469000 | Switch-push/start |
|
Immediately | $ 55.81 | ||||
| F14 | 134446800 | Resistor,power |
|
$ 66.68 | |||||
| F15 | 134398500 | Switch,temp Selector ,4 Posn Rotary |
|
$ 40.06 | |||||
| F23 | 134008300 | Wiring Harness,controls |
|
- | |||||
| F38 | 134087000 | Buzzer,adjustable |
|
$ 93.35 | |||||
| FNI | 134110500 | Wiring Harness,main |
|
$ 251.95 |
