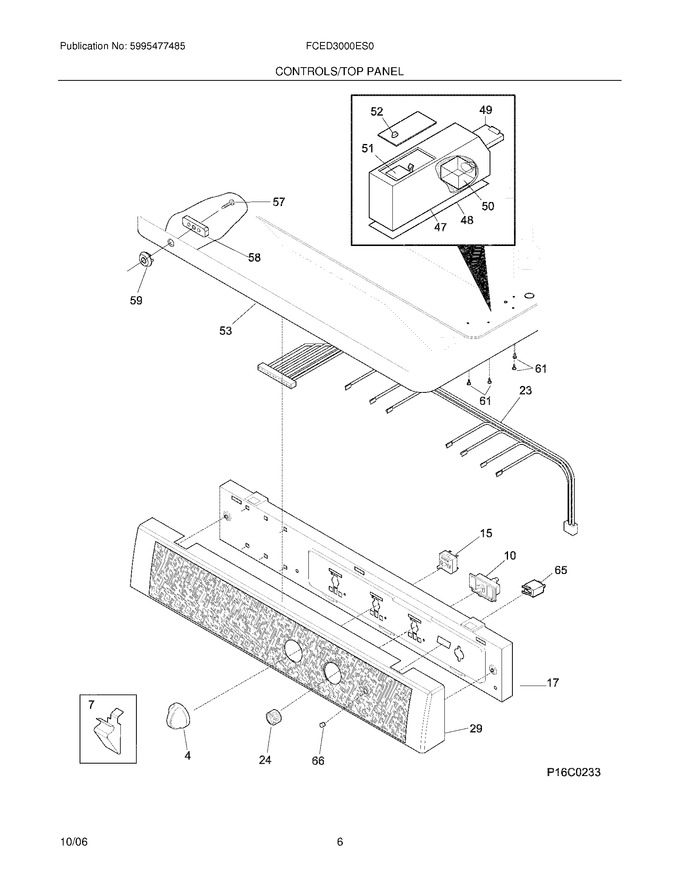

07 - Controls/top Panel


09 - Motor


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
4	131265000		Knob-switch, White				$ 38.89
7	3205821		Clip,top-to-front			Immediately	$ 35.44
17	134064501		Bracket,control Mtg.				$ 76.13
24	131970200		Button,push/start ,white				$ 55.02
29	131666981		Console,frame ,w/trim		Appelez-nous	-
48	134028000		Gasket,meter Housing				$ 89.78
49	5304458424		Coin Tray,sliding ,$1.00 Input				$ 961.64
50	5304458423		Coin Box,with 2 Keys		Appelez-nous	-
53	134086822		Panel,dryer Top ,white ,coin-op		Appelez-nous	-
57	3205253		Screw,pan Head ,6-20b X 0.375		Appelez-nous	-
58	131863800		Retainer,button Plug		Appelez-nous	-
59	131863700		Plug,button		Appelez-nous	-
61	131901700		Screw,mcn Point ,1/4-20 ,(4)		Appelez-nous	-
66	131724800		Lens,status Light ,clear				$ 12.06
F10	131469000		Switch-push/start			Immediately	$ 55.81
F15	131259200		Switch, Temperature				$ 92.03
F23	134028500		Wiring Harness,controls		Appelez-nous	-
F47	134274000		Housing,coin Meter ,assembly		Appelez-nous	-
F51	5304458425		Timer,dryer ,coin Meter				$ 299.46
F52	5304458427		Lock,service Door ,with Key				$ 129.20
F65	131724700		Lamp,status Light				$ 59.59
NI	5304458428		Key,lock ,service Door				$ 58.07
NI	5304458429		Insert,block-out Key ,coin Slot		Appelez-nous	-
NI	5304435395		Mounting Hardware,meter Case ,security		Appelez-nous	-
NI	5304458430		Adapter,10 Cent ,coin Slot		Appelez-nous	-
NI	134310100		Wiring Harness,main		Appelez-nous	-
