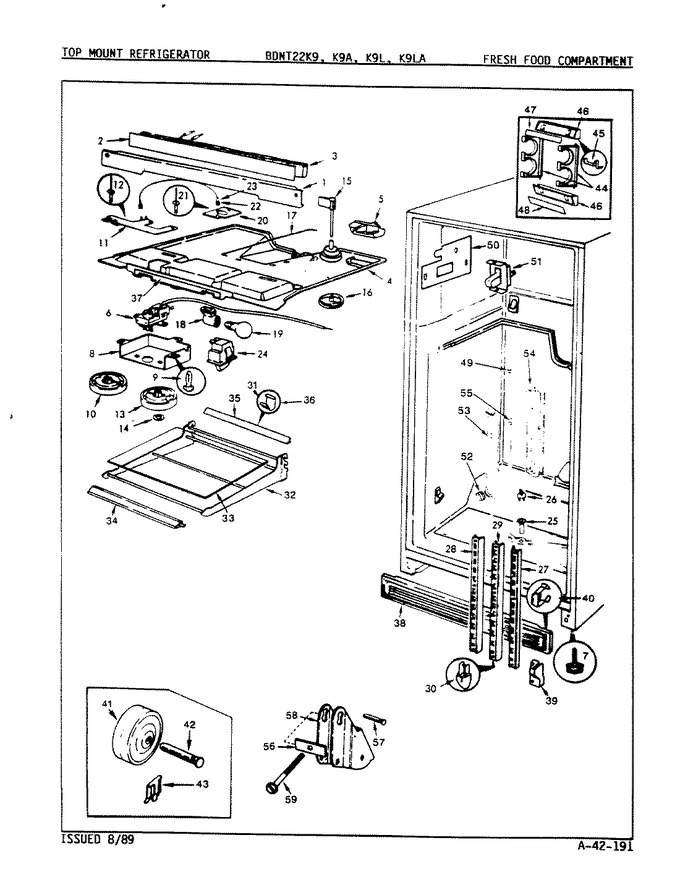

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9986-117		Screw		Appelez-nous	-
1	65797-3-AM		Divider, Mullion (alm)		Appelez-nous	-
2	60105-9		Heater Wire		Appelez-nous	-
3	60140-3		Insulation		Appelez-nous	-
3	65274-1		Wire Harness		Appelez-nous	-
4	60085-50		Top, F.f. Compartment		Appelez-nous	-
5	60120-2		Deflector		Appelez-nous	-
6	406013-1		Screw		Appelez-nous	-
6	WP68601-6		Control, Temperature   (Replaces: 66545-1)			Immediately	$ 233.80
7	W11117769		Leg, Leveling   (Replaces: 6012-8)			Immediately	$ 16.61
8	405012-1		Screw		Appelez-nous	-
8	60083-1		Cover, Temperature Control		Appelez-nous	-
9	28013-2		Rivet, Air Tunnel		Appelez-nous	-
10	68303-3		Knob, Control		Appelez-nous	-
11	60147-1		Bracket, Control		Appelez-nous	-
12	WP210720		Rivet   (Replaces: 26397-2)				$ 12.14
13	W11233072		Screw   (Replaces: 405016-103)			Immediately	$ 12.62
13	68303-6		Knob, Control		Appelez-nous	-
14	420092-900		Washer, Spring		Appelez-nous	-
15	60071-1		Damper		Appelez-nous	-
16	60082-3		Crank, Frzr Control		Appelez-nous	-
17	60078-4		Rod, Frzr Control		Appelez-nous	-
18	60577-1		Socket, Light		Appelez-nous	-
19	W11679940		Bulb, Light   (Replaces: 31956-1)			Immediately	$ 10.17
20	60147-2		Bracket, Light Socket		Appelez-nous	-
21	WP210720		Rivet   (Replaces: 26397-2)				$ 12.14
22	29675-22		Ground Wire		Appelez-nous	-
23	29675-28		Ground Wire		Appelez-nous	-
24	55732-3		Switch		Appelez-nous	-
24	54653-30		Lead		Appelez-nous	-
25	54531-8		Grommet		Appelez-nous	-
26	65039-1		Cap, Drain Tube		Appelez-nous	-
27	68238-2		Rail, Cantilever Shelf		Appelez-nous	-
28	68238-1		Rail, Cantilever Shelf		Appelez-nous	-
29	68238-3		Rail, Cantilever Shelf		Appelez-nous	-
30	400037-28		Screw		Appelez-nous	-
30	60340-1		End Cap, Center Rail		Appelez-nous	-
31	66333-1		Clip, Shelf Trim		Appelez-nous	-
32	60570-11		Frame, Shelf		Appelez-nous	-
33	68139-14		Glass Cantilever Shelf		Appelez-nous	-
34	68136-26		Trim, Cantilever Shelf		Appelez-nous	-
35	65276-36		Trim, Rear-1/2 Shelf		Appelez-nous	-
36	66333-1		Clip, Shelf Trim		Appelez-nous	-
37	60571-46		Insert		Appelez-nous	-
38	60237-40		Kickplate (blk)		Appelez-nous	-
39	402039-4		Screw		Appelez-nous	-
39	60381-1		End Cap		Appelez-nous	-
40	60100-1		Clip, Kickplate				$ 5.85
40	WP489478		Screw   (Replaces: 400017-1)				$ 6.98
41	29834-2		Wheel		Appelez-nous	-
42	29835-2		Pin, Wheel		Appelez-nous	-
43	60216-1		Clip		Appelez-nous	-
44	56519-4		Rack, Wine		Appelez-nous	-
44	WP489478		Screw   (Replaces: 400017-1)				$ 6.98
45	58057-1		Spring, Wine Rack		Appelez-nous	-
46	65689-1		Support, Wine Rack		Appelez-nous	-
47	65753-25		Insert		Appelez-nous	-
48	65753-26		Insert		Appelez-nous	-
49	19530-36		Nylon Nut		Appelez-nous	-
50	60583-1		Bracket, Switch		Appelez-nous	-
51	54653-33		Lead		Appelez-nous	-
51	29675-32		Ground Wire		Appelez-nous	-
51	60585-1		Switch, Mullion Heater		Appelez-nous	-
51	54653-32		Lead		Appelez-nous	-
51	402013-1		Screw		Appelez-nous	-
52	68282-1		Bellows, Air Tunnel		Appelez-nous	-
53	68285-2		Cover, Air Tunnel		Appelez-nous	-
54	68289-4		Insulation, Air Tunnel		Appelez-nous	-
55	W11233072		Screw   (Replaces: 400015-31)			Immediately	$ 12.62
55	68290-3		Damper, Air Tunnel		Appelez-nous	-
56	59101-1		Tapping Plate, Wheel		Appelez-nous	-
57	64965-1		Pin, Wheel		Appelez-nous	-
58	67530-1		Bracket, Wheel		Appelez-nous	-
59	406083-1		Screw, Wheel Adjustment		Appelez-nous	-
