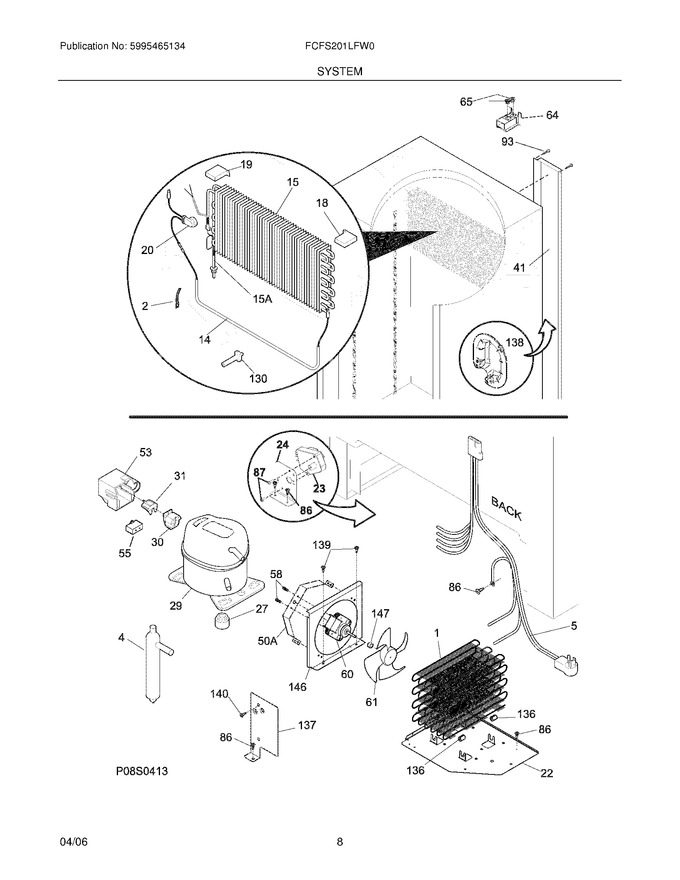

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	5308000110		Strap-evap/heater,aluminum ,(2)			Immediately	$ 59.82
14	216730700		Heater-defrost			Immediately	$ 116.44
18	216727600		Insulator-evap,styrofoam		Appelez-nous	-
19	216727700		Insulator-evap,styrofoam		Appelez-nous	-
20	297216600		Thermostat,defrost   (Replaces: 216872200)			Immediately	$ 27.52
22	216970300		Base,condenser				$ 38.96
24	216968500		Bracket-timer		Appelez-nous	-
27	216498900		Grommet,compressor   (Replaces: 5308002681)				$ 13.01
41	297070700		Cover-wiring,rear		Appelez-nous	-
53	216894500		Cover-terminal		Appelez-nous	-
58	240555002		Screw,hex Washer Head ,8-32 X 0.375   (Replaces: 218897002)			Immediately	$ 13.46
64	216578800		Vent				$ 47.83
65	5309950074		Valve, Breather				$ 12.48
86	216036600		Screw,ph Washer Head ,8-32ca X 0.500 ,thread Forming		Appelez-nous	-
87	08037849		Screw,ph Truss Head ,6-32(t) X 0.500 ,thread Cutting				$ 8.98
93	216858001		Screw,ph Truss Head ,8-18ab X 0.500   (Replaces: 5303161215)			Immediately	$ 10.85
130	216486800		Support,evaporator Mtg		Appelez-nous	-
136	240405201		Grommet,rubber ,black ,cond Tube/wire				$ 19.85
137	297090300		Barrier-fan		Appelez-nous	-
138	297070800		Cover-drain Hose				$ 8.24
139	216337700		Screw,hex Washer Head `10-24 X 0.500		Appelez-nous	-
140	216050505		Screw,no.10-32x9/16 ,zinc Gx ,fan Barrier		Appelez-nous	-
146	216970200		Shroud-fan Orfice				$ 104.90
147	240560001		Ring-compression		Appelez-nous	-
50A	240524001		Bracket,fan Motor Mount				$ 185.70
F1	5300083897		Condenser				$ 538.37
F15	297311300		Evaporator   (Replaces: 297052900)				$ 201.73
F15A	297363100		Heat Exchanger   (Replaces: 216393200)				$ 148.92
F23	5304518034		Timer-defrost   (Replaces: 216744500)			Immediately	$ 57.55
F29	216966900		Compressor,assy		Appelez-nous	-
F30	216894200		Starter,relay			Immediately	$ 35.44
F31	216100126		Overload Protector				$ 85.30
F4	5303305677		Drier-filter   (Replaces: 216938600)			Immediately	$ 31.67
F5	297069200		Harness-main		Appelez-nous	-
F55	297286810		Capacitor-run   (Replaces: 216894400)				$ 35.44
F60	5303918774		Motor-condenser Fan   (Replaces: 240525401)			Immediately	$ 186.30
F61	240524102		Fan Blade,galv Steel ,condenser Fan   (Replaces: 240524101)			Immediately	$ 39.43
NI	216987800		Adapter-harness				$ 48.20
NI	240491501		Screw-compressor Mtg,1/4-28 X 1.16 ,(4)		Appelez-nous	-
NI	5303313652		Cap,protective ,condenser		Appelez-nous	-
NI	297082300		Harness-jumper		Appelez-nous	-
NI	5303298960		Spacer-tube,0.237`` Id		Appelez-nous	-
NI	5303311565		Clip-cable				$ 2.10
