SELECT A DIAGRAM

01 - Cover


03 - Cabinet/drum


05 - Front Panel/lint Filter


07 - Controls/top Panel


09 - Motor


11 - Burner

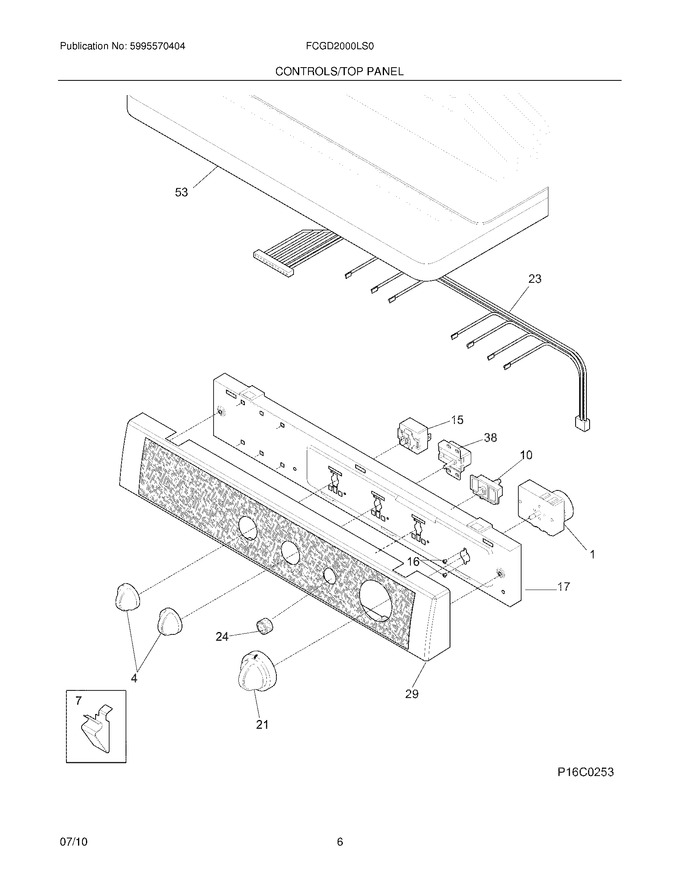

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	131583801		Timer,dryer ,3-off				$ 336.65
4	131965300		Knob,rotary ,white/gray			Immediately	$ 53.15
7	3205821		Clip,top-to-front			Immediately	$ 35.44
16	134034300		Screw,pan Hd Phillips ,8-18b X 0.250		Appelez-nous	-
17	134064501		Bracket,control Mtg.				$ 76.13
21	131264905		Knob,timer ,white/cranberry ,with Indicator				$ 44.10
24	131111501		Button,start Switch ,white ,push Type				$ 13.79
29	131666991		Console,frame ,white ,w/trim		Appelez-nous	-
53	134086812		Panel,dryer Top ,white ,stackable				$ 336.42
F10	131469000		Switch-push/start			Immediately	$ 55.81
F15	134398500		Switch,temp Selector ,4 Posn Rotary				$ 40.06
F23	134009300		Wiring Harness,controls		Appelez-nous	-
F38	134087000		Buzzer,adjustable				$ 93.35
FNI	134006600		Wiring Harness,main				$ 277.78

    View Diagram in Separate Window       Print Part List
