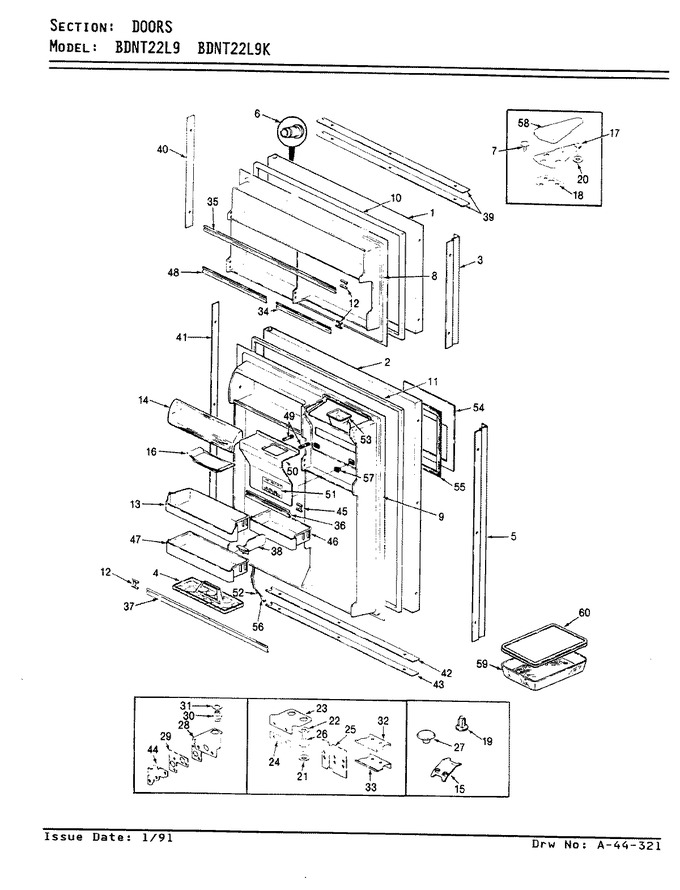

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	68476-10-WW		Panel, Frz. Door (wht)		Appelez-nous	-
2	RA95056-1		Door Insulation Kit		Appelez-nous	-
2	68477-9-WW		Panel, F.f. Door (wht)		Appelez-nous	-
3	68667-4		Handle, Frz. Door		Appelez-nous	-
4	60066-1		Tray, Egg		Appelez-nous	-
5	68666-3		Handle, F.f. Door		Appelez-nous	-
5	65275-37		Screw, Handle		Appelez-nous	-
5	66799-1		Achor, Screw		Appelez-nous	-
6	29356-1		Retainer, Nameplate		Appelez-nous	-
7	55782-2		Plug Button (white)		Appelez-nous	-
8	65937-9		Liner, Door		Appelez-nous	-
9	65275-5		Screw		Appelez-nous	-
9	68677-6		Liner, F.f. Door		Appelez-nous	-
10	66199-7		Gasket, Door		Appelez-nous	-
11	66199-8		Gasket, Door		Appelez-nous	-
12	WP65245-1		Retainer, Shelf Trim   (Replaces: 65245-1)				$ 9.39
13	68130-62		Insert, Pickoff Shelf		Appelez-nous	-
13	60037-40		Door Shelf		Appelez-nous	-
14	66184-367		Door, Dairy		Appelez-nous	-
15	60123-2		Clip, Stop Screw		Appelez-nous	-
16	29936-2		Tray, Butter		Appelez-nous	-
17	53709-20		Hinge, Upper		Appelez-nous	-
18	65031-1		Shim, Upper Hinge		Appelez-nous	-
19	66920-2		Plug Button		Appelez-nous	-
20	54233-1		Washer				$ 7.71
21	54233-2		Washer		Appelez-nous	-
22	67483-3		Washer, Lower Hinge   (Replaces: 67483-2)			Immediately	$ 45.86
22	WP3-24838-048		Screw   (Replaces: 9986-87)				$ 7.00
23	68811-2		Hinge, Center		Appelez-nous	-
24	68812-1		Shim, Center Hinge		Appelez-nous	-
25	68377-1		Tapping Plate, Center Hinge		Appelez-nous	-
25	65275-23		Screw		Appelez-nous	-
26	67322-1		Pin, Center Hinge		Appelez-nous	-
27	67634-2		Plug Button, Hinge Cup (wht)		Appelez-nous	-
28	403100-1		Screw		Appelez-nous	-
28	67714-3		Hinge, Lower		Appelez-nous	-
29	60626-1		Shim, Lower Hinge		Appelez-nous	-
30	68789-1		Hinge Pin		Appelez-nous	-
31	67483-3		Washer   (Replaces: 67483-5)			Immediately	$ 45.86
32	60030-6		Door Stop, Frzr Door		Appelez-nous	-
33	60030-5		Door Stop, F.f. Door		Appelez-nous	-
33	9986-108		Screw		Appelez-nous	-
33	65275-18		Screw, Freezer Stop		Appelez-nous	-
34	WP61003045		Trim, Shelf Door   (Replaces: 68375-15)				$ 129.55
35	WP61003045		Trim, Frz Dr Shelf   (Replaces: 68375-13)				$ 129.55
36	68376-16		Trim, Shelf		Appelez-nous	-
37	WP61003045		Trim, Shelf   (Replaces: 68375-21)				$ 129.55
38	66645-6		Organizer Package		Appelez-nous	-
39	68669-5		Perimeter Trim Top		Appelez-nous	-
40	68196-2		Trim, Perimeter (side)		Appelez-nous	-
41	68195-2		Trim, Perimeter (side)		Appelez-nous	-
42	68670-2		Trim, Perimeter (bottom)		Appelez-nous	-
43	65275-38		Screw		Appelez-nous	-
43	68675-2		Perimeter Trim Bottom		Appelez-nous	-
43	65275-39		Screw		Appelez-nous	-
44	65790-3		Tapping Plate		Appelez-nous	-
45	65246-1		Retainer				$ 5.04
46	68130-58		Insert, Pickoff Shelf		Appelez-nous	-
46	60037-35		Door Shelf		Appelez-nous	-
47	60037-39		Door Shelf		Appelez-nous	-
47	68130-63		Trim, Pick-off Shelf		Appelez-nous	-
48	WP61003045		Trim, Shelf Door   (Replaces: 68375-14)				$ 129.55
49	52077-26		Seal		Appelez-nous	-
50	68779-1		Insulation, Fountain Perimeter		Appelez-nous	-
50	68700-2		Access Panel		Appelez-nous	-
50	68781-1		Insulation, Fountain Back		Appelez-nous	-
51	68785-1		Insert, Food Storage		Appelez-nous	-
52	WPW10426709		Tubing   (Replaces: 67187-11)				$ 126.83
53	68571-1		Chute, Ice		Appelez-nous	-
54	68594-5		Escutcheon (wht)		Appelez-nous	-
54	68594-9		Escutcheon		Appelez-nous	-
55	95121-1		Tape, Escutcheon		Appelez-nous	-
56	68536-1		Wire Harness		Appelez-nous	-
56	68907-1		Wire Harness		Appelez-nous	-
57	65184-3		Latch		Appelez-nous	-
58	65003-3		Cover, Upper Hinge (alm)		Appelez-nous	-
58	65003-6		Cover, Upper Hinge (wht)		Appelez-nous	-
59	68426-1		Dish, Microwave		Appelez-nous	-
60	68534-1		Insert, M/wave Dish		Appelez-nous	-
60	68427-1		Cover, Micro Dish		Appelez-nous	-
