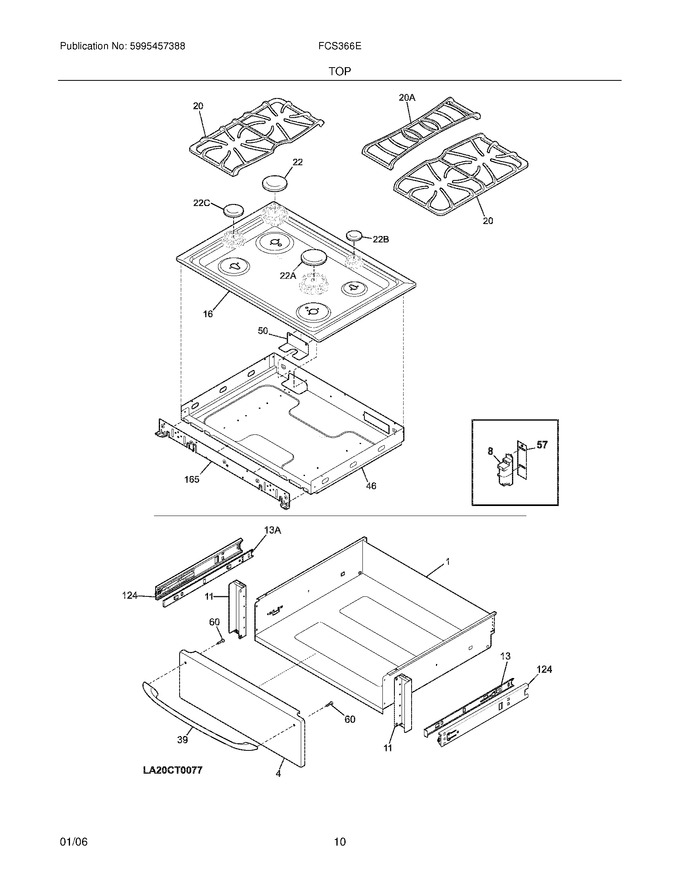

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318107308		Drawer				$ 100.73
4	318298829		Panel,drawer ,stainless ,front   (Replaces: 318298810)				$ 210.92
11	318298601		Bracket,drawer Support ,(2)		Appelez-nous	-
13	318259507		Glide,warmer ,inner Rh   (Replaces: 318259501)			Immediately	$ 69.01
16	318320005		Maintop Assembly,black				$ 189.79
20	316424603		Grate,black ,(2)		Appelez-nous	-
22	316213605		Cap,12k Burner ,black				$ 143.06
39	316270200		Handle,door ,black				$ 136.40
46	318291401		Box,burner		Appelez-nous	-
50	318328500		Cover,burner Box		Appelez-nous	-
57	318295610		Panel,service		Appelez-nous	-
60	5304452028		Screw,handle Mtg ,10-14 X 1/2 ,(2)				$ 11.02
124	316105501		Glide,warmer Drawer ,outer/rh & Lh ,(2)				$ 90.72
165	318227504		Plate,mounting		Appelez-nous	-
13A	318259506		Glide,warmer ,inner Lh   (Replaces: 318259500)				$ 69.01
20A	318307103		Grate,black ,center		Appelez-nous	-
22A	316271904		Cap,17k Burner ,black				$ 206.11
22B	316206604		Cap,5k Burner ,black				$ 102.69
22C	316213505		Cap,9.5k Burner ,black				$ 102.30
F8	5304505695		Module,spark   (Replaces: 316135701)			Immediately	$ 68.16
NI	318163600		Cleaner,cooktop		Appelez-nous	-
NI	318531702		Spacer,(6)   (Replaces: 318014110)				$ 9.93
NI	5303325171		Washer,plastic		Appelez-nous	-
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	5303300265		Screw,8-18 X 1/2 ,(2)				$ 15.17
NI	5304453707		Screw, 8-32 X 3/8   (Replaces: 5303311333)			Immediately	$ 15.92
