02 - Backguard
03 - Cooktop Parts
04 - Door Parts
05 - Burner, Manifold And Gas Control
06 - Body Parts
07 - Broiler Drawer Parts
SELECT A DIAGRAM
New Model Search:

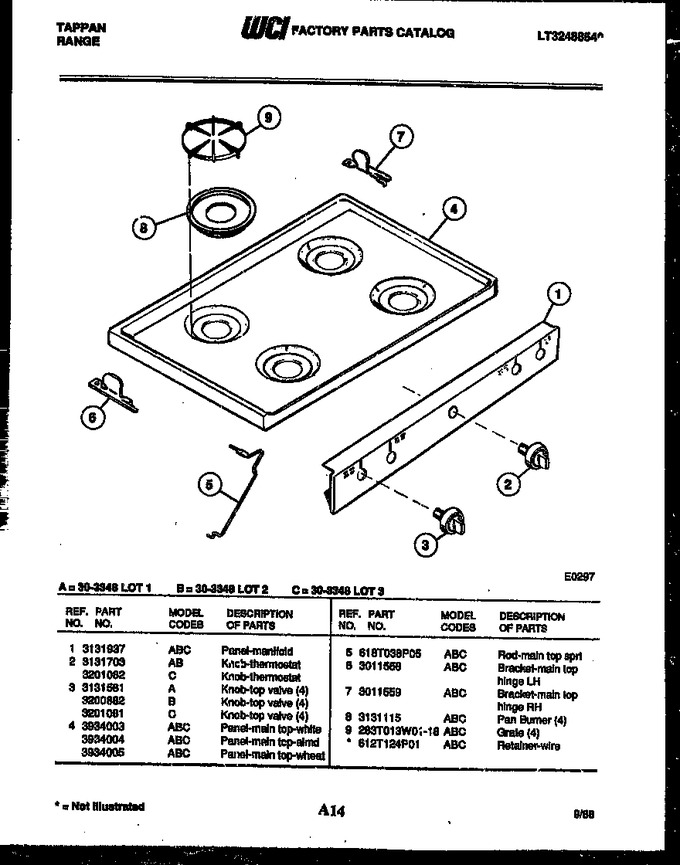

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3131937 | Panel - Manifold |
|
- | |||||
| 2 | 3131703 | Knob-thermostat |
|
- | |||||
| 4 | 3934003 | Panel-main Top-white |
|
- | |||||
| 5 | 618T038P05 | Rod - Main Top Sprt |
|
- | |||||
| 6 | 3011558 | Bracket, Main Top Hinge Lh |
|
- | |||||
| 7 | 3011559 | Bracket, Main Top Hinge Rh |
|
- | |||||
| 8 | 3131115 | Pan, Burner (4) |
|
- | |||||
| 9 | 283T013W01-18 | Grate (4) |
|
- | |||||
| *17082 | 612T124P01 | Retainer - Wire |
|
- |
