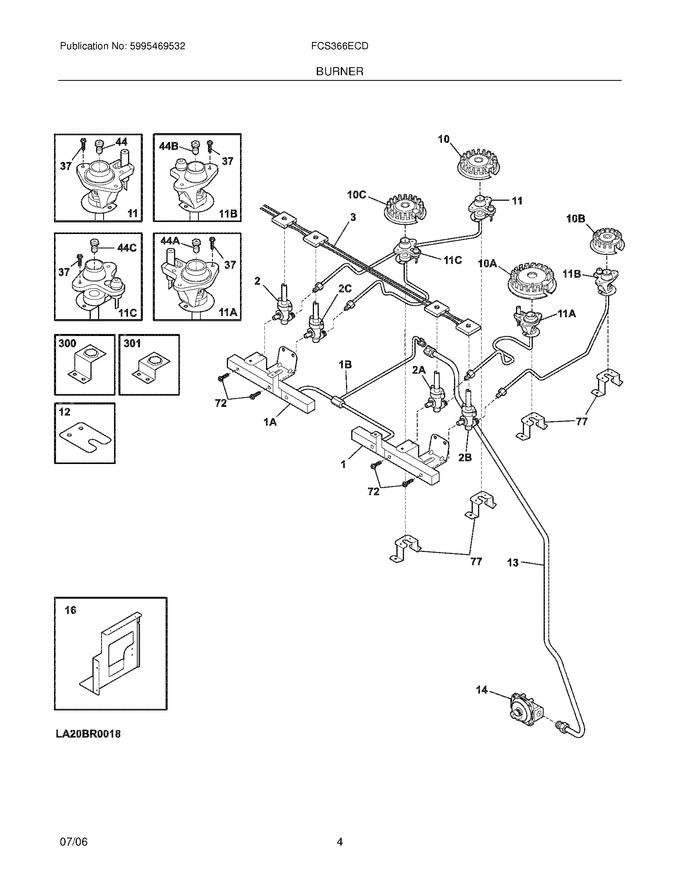

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 318305600 | Manifold,right Side |
|
$ 129.70 | |||||
| 11 | 318306105 | Ignitor Assembly,12k ,left Rear ,w/tube & Holder |
|
$ 206.38 | |||||
| 12 | 318369900 | Bracket,support ,(2) |
|
- | |||||
| 13 | 318305110 | Tube,regulator ,to Manifold |
|
$ 105.84 | |||||
| 16 | 318590002 | Panel,regulator Mtg. |
|
$ 54.76 | |||||
| 37 | 5303307980 | Screw,8-32 X 0.437 ,(4) |
|
Immediately | $ 14.18 | ||||
| 44 | 316237901 | Orifice,top Burner ,12k |
|
$ 64.46 | |||||
| 72 | 316215600 | Screw,valve Mtg. ,1/4 - 20 |
|
Immediately | $ 14.18 | ||||
| 77 | 318192606 | Bracket,burner Mtg ,(4) |
|
- | |||||
| 300 | 318322300 | Bracket,inlet ,long ,door |
|
- | |||||
| 301 | 318322301 | Bracket,inlet ,short ,block |
|
- | |||||
| 11A | 318306107 | Ignitor Assembly,16k ,right Front ,w/tube & Holder |
|
$ 169.16 | |||||
| 11B | 318306108 | Ignitor Assembly,5k ,right Rear ,w/tube & Holder |
|
$ 180.08 | |||||
| 11C | 318306104 | Ignitor Assembly,9.5k ,left Front ,w/tube & Holder |
|
$ 159.10 | |||||
| 1A | 318305601 | Manifold,left Side |
|
$ 105.42 | |||||
| 1B | 318305410 | Tube,manifold ,3/8 ,interconnect |
|
$ 294.13 | |||||
| 44A | 316237912 | Orifice,top Burner ,16k |
|
- | |||||
| 44B | 316237903 | Orifice-top Burner,5k |
|
$ 67.83 | |||||
| 44C | 316237902 | Orifice,top Burner ,9.5k |
|
$ 65.22 | |||||
| F10 | 316212300 | Burner,sealed ,12k |
|
$ 105.95 | |||||
| F10A | 316223300 | Burner,sealed ,16/17k |
|
$ 117.66 | |||||
| F10B | 316206400 | Burner,sealed ,5k |
|
- | |||||
| F10C | 316212400 | Burner,sealed ,9.5k |
|
Immediately | $ 32.62 | ||||
| F14 | 318122700 | Regulator,pressure |
|
$ 139.63 | |||||
| F2 | 318233920 | Valve,top Burner ,12000 Btu |
|
$ 172.94 | |||||
| F2A | 318233940 | Valve,top Burner ,16/17k |
|
$ 162.23 | |||||
| F2B | 318233900 | Valve,top Burner ,5000 Btu |
|
$ 161.53 | |||||
| F2C | 318233910 | Valve,top Burner ,9500 Btu |
|
$ 132.56 | |||||
| F3 | 318232600 | Wiring Harness,w/igntr Switch |
|
- | |||||
| NI | 134178901 | Screw,8 X 0.500 (Replaces: 5303211311) |
|
$ 14.89 | |||||
| NI | 318199725 | Wiring Harness,ignitor |
|
- | |||||
| NI | 318186911 | Lp Conversion Kit |
|
$ 72.55 | |||||
| NI | 08011955 | Screw,10-24 X 0.375 ,square Drive |
|
Immediately | $ 9.36 | ||||
| NI | 5303311306 | Screw,8-18 X 0.375 ,(3) |
|
- |
