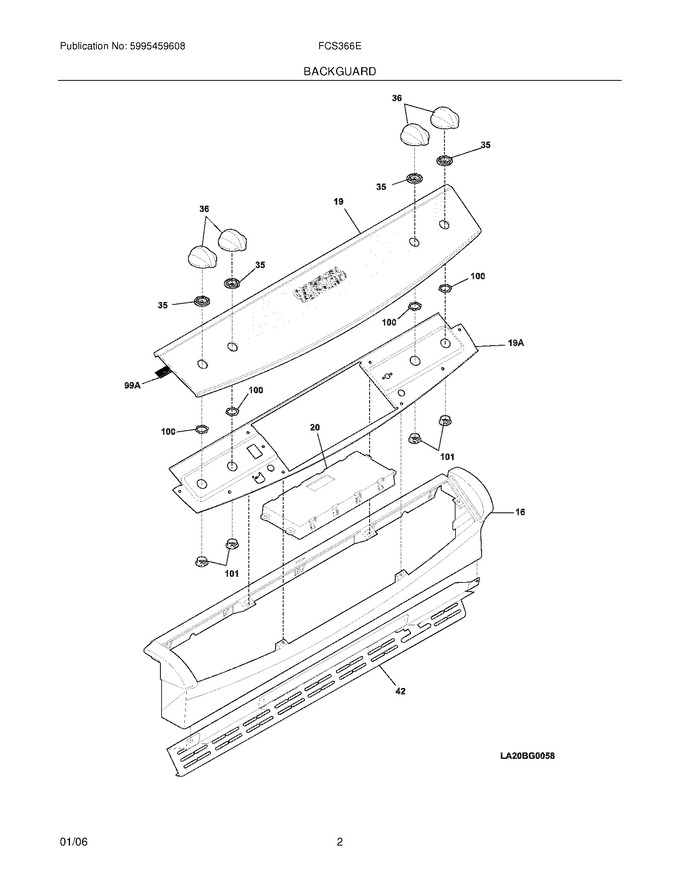

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
16	318299100		Console,assy. ,white				$ 418.11
19	318312207		Control Panel Assembly,w/membrane ,white   (Replaces: 318312204)				$ 1,029.00
35	318233721		Retainer,control Panel ,white				$ 19.90
36	316223025		Knob,control ,white				$ 40.06
42	318298001		Trim,vent ,black ,upper				$ 59.01
100	318233800		Nut,hex				$ 63.53
101	318233400		Bushing,retainer				$ 43.21
19A	318224404		Panel,control Mtg.				$ 72.50
99A	318223900		Gasket,dark Grey			Immediately	$ 82.80
F20	316418532		Clock/timer,electronic ,es350				$ 386.66
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
NI	5303300265		Screw,8-18 X 1/2 ,(2)				$ 15.17
NI	5304453707		Screw, 8-32 X 3/8   (Replaces: 5303311333)			Immediately	$ 15.92
NI	318224811		Harness,wiring ,timer		Appelez-nous	-
NI	5304453707		Screw,control Mtg.			Immediately	$ 15.92

    View Diagram in Separate Window       Print Part List
