SELECT A DIAGRAM

01 - Cover

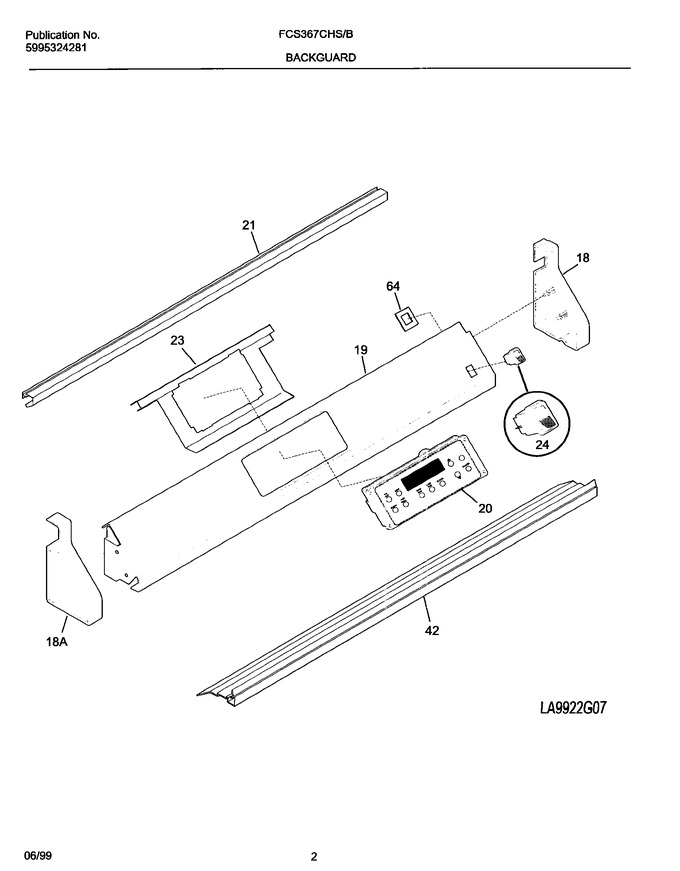

03 - Backguard


05 - Burner


07 - Body


09 - Top/drawer


11 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
18	5303300160		End Cap, Black, Rh		Appelez-nous	-
19	318005583		Panel-control,black		Appelez-nous	-
21	318027803		Trim,backguard ,black ,top		Appelez-nous	-
23	318015508		Bracket-clock Mtg		Appelez-nous	-
42	318106903		Trim-backguard,black ,bottom		Appelez-nous	-
64	318112200		Plate		Appelez-nous	-
18A	5303300161		End Cap, Black, Lh		Appelez-nous	-
F20	318012917		Clock/timer, Eoc, Black		Appelez-nous	-
F24	5304527841		Switch-rocker,black   (Replaces: 316005602)			Immediately	$ 11.38
NI	08016432		Screw,8-18 X 3/8		Appelez-nous	-
NI	5303323145		Nut		Appelez-nous	-
NI	318083167		Wiring Harness		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
