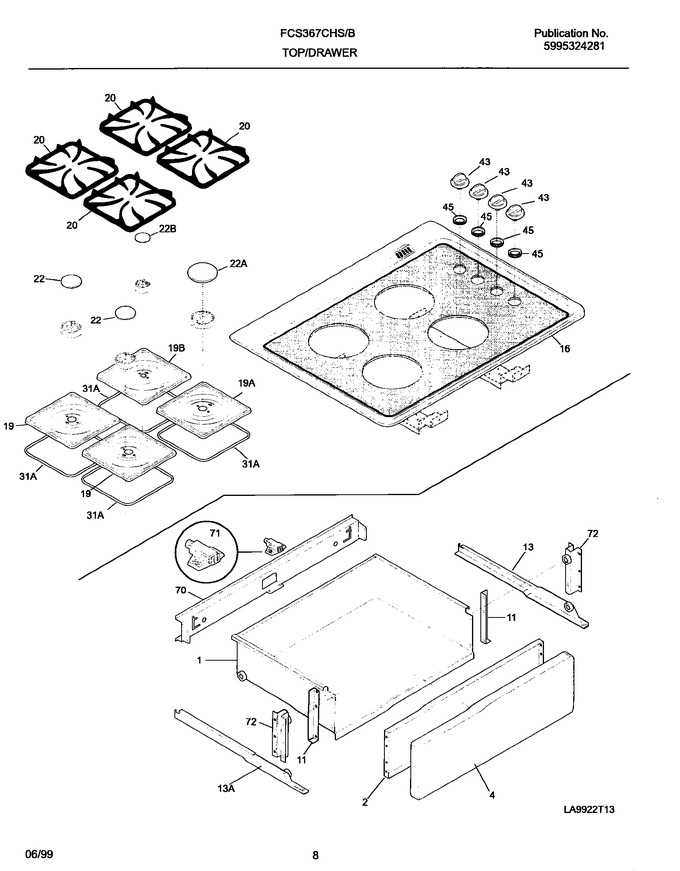

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304505701		Drawer-utility   (Replaces: 5303310500)			Immediately	$ 143.39
2	318108000		Liner, Drawer		Appelez-nous	-
4	5303311126		Panel-drawer,white		Appelez-nous	-
11	5303311125		Bracket,drawer		Appelez-nous	-
13	5303311129		Channel,drawer ,rh		Appelez-nous	-
16	318079200		Main Top, Glass, White		Appelez-nous	-
19	318168116		Pan,burner ,white ,medium				$ 97.65
20	318120106		Grate-grey		Appelez-nous	-
22	318076411		Cap-burner,white ,mid Lf & Lr		Appelez-nous	-
43	318016500		Knob, Top Valve		Appelez-nous	-
45	318146200		Bushing-top Burner		Appelez-nous	-
70	5303311143		Bracket-slide		Appelez-nous	-
71	5303311144		Magnet & Spring Assy		Appelez-nous	-
72	5303311145		Bracket & Wheel Assy		Appelez-nous	-
13A	5303311130		Channel,drawer ,lh		Appelez-nous	-
19A	318168126		Pan,burner ,white ,large				$ 93.40
19B	318168106		Pan,burner ,white ,small				$ 77.29
22A	318076421		Cap-burner,white ,large Rf				$ 147.70
22B	318076401		Cap-burner,white ,small Rr		Appelez-nous	-
31A	318053901		Gasket-pan   (Replaces: 318053900)				$ 33.60
NI	134178901		Screw, 8 X 1/2   (Replaces: 5303211311)				$ 14.89
