SELECT A DIAGRAM

01 - Cover

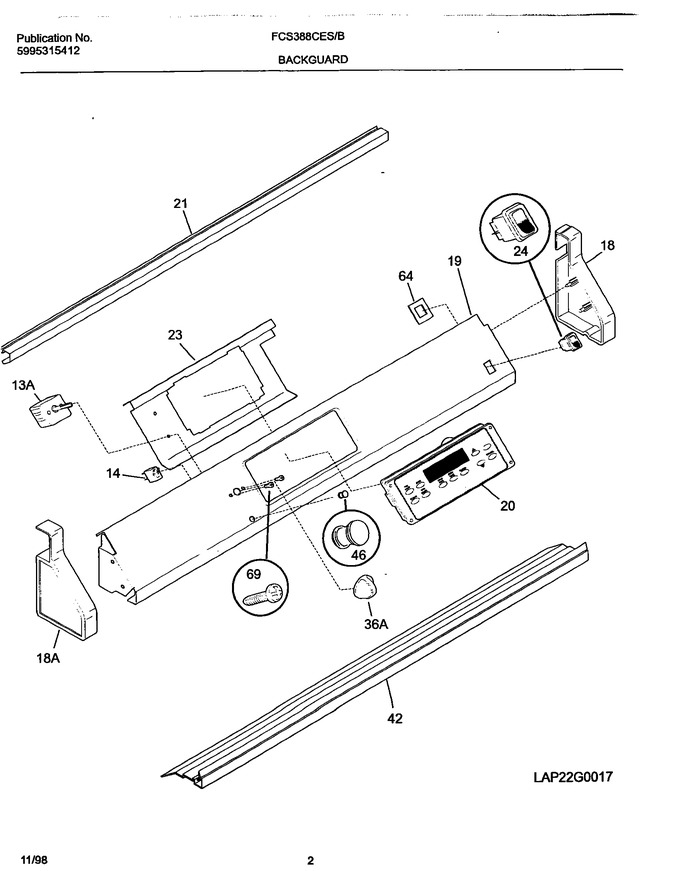

03 - Backguard


05 - Burner


07 - Body


09 - Top/drawer


11 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
14	5303051533		Light-lamp/indicator				$ 53.81
18	5303300160		End Cap, Black, Rh		Appelez-nous	-
19	318005541		Panel-control		Appelez-nous	-
21	318027800		Trim-backguard, Top		Appelez-nous	-
23	318015506		Bracket-clock Mtg		Appelez-nous	-
42	318106900		Trim-vent		Appelez-nous	-
46	5308006417		Lens-light / Lamp, Indicator				$ 19.06
64	318112200		Plate		Appelez-nous	-
69	5303288565		Screw, Switch Mtg., 8-32 X 3/16   (Replaces: 5303323134)				$ 3.12
13A	5304508926		Switch-warmer, Infinite   (Replaces: 316095500)			Immediately	$ 84.18
18A	5303300161		End Cap, Black, Lh		Appelez-nous	-
36A	318165103		Knob-warmer, Grey		Appelez-nous	-
F20	318012900		Clock/timer, Electronic		Appelez-nous	-
F24	5304527841		Switch-rocker Almond   (Replaces: 316005612)			Immediately	$ 11.38
NI	134178901		Screw, 8 X 1/2   (Replaces: 5303211311)				$ 14.89
NI	08016432		Screw,8-18 X 3/8		Appelez-nous	-
NI	5303323145		Nut		Appelez-nous	-
NI	5304453707		Screw, 8-32 X 3/8   (Replaces: 5303311333)			Immediately	$ 15.92
NI	5303311528		Screw, 6-20 X 3/8		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
