01 - Cover


03 - Backguard


05 - Burner


07 - Body


09 - Top/drawer


11 - Door

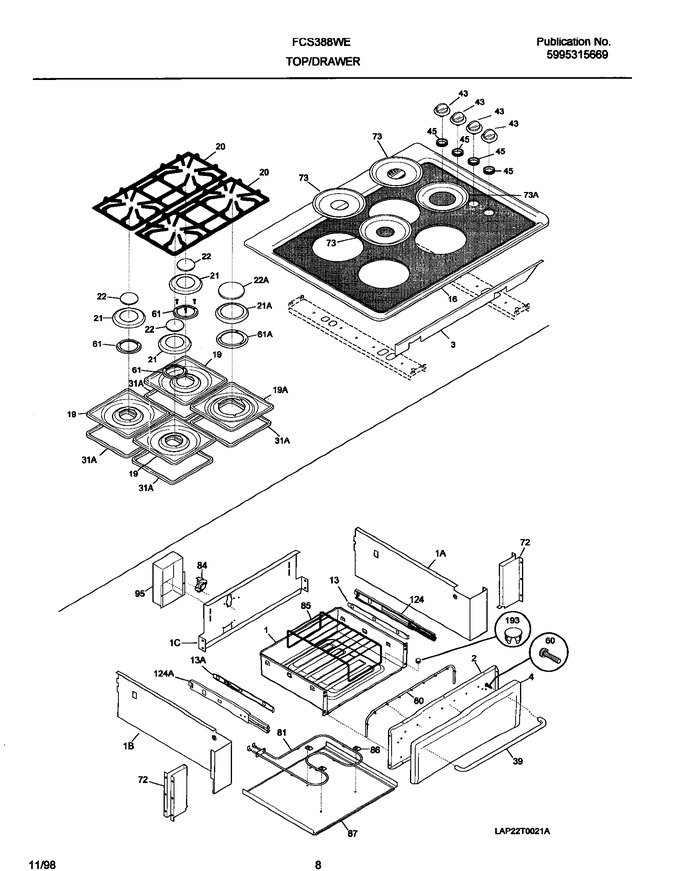

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318142500		Drawer,warmer		Appelez-nous	-
2	318108011		Liner, Drawer		Appelez-nous	-
3	318090700		Bracket-maintop		Appelez-nous	-
4	318107900		Panel-drawer, White		Appelez-nous	-
13	316094900		Rail,drawer ,rh Outer		Appelez-nous	-
16	318079203		Main Top-glassblack		Appelez-nous	-
19	318066901		Pan-burner,black		Appelez-nous	-
20	318120400		Grate, (2)		Appelez-nous	-
21	5303209009		Trim Ring, Black		Appelez-nous	-
22	316098501		Cap-burner,black ,small		Appelez-nous	-
39	316079500		Handle-drawer, White				$ 289.70
43	318099110		Knob Top Valve				$ 104.42
45	5303307933		Bushing, Top Burner Knob		Appelez-nous	-
60	240442708		Screw Handle 10-32 X 1-1/8   (Replaces: 5304400794)				$ 8.34
61	318083900		Trim Ring Chrome		Appelez-nous	-
72	318113401		Bracket-slide		Appelez-nous	-
73	318057100		Deflector		Appelez-nous	-
80	318052700		Seal,door ,warmer Drawer		Appelez-nous	-
85	807328301		Rack, Warmer Drawer   (Replaces: 316093600)				$ 87.21
86	316095800		Clip-hold Down				$ 9.93
87	318121501		Base-warmer		Appelez-nous	-
95	318143701		Cover-wire		Appelez-nous	-
124	316096500		Channel,drawer ,rh,inner		Appelez-nous	-
193	5304400796		Plug		Appelez-nous	-
124A	316096501		Channel Drawer,lh,inner		Appelez-nous	-
13A	316094901		Rail-drawer,lh,outer		Appelez-nous	-
19A	318066911		Pan-burner, Large, Black				$ 191.94
1A	318143307		Deflector-warmer,side,rh		Appelez-nous	-
1B	318143306		Deflector-warmer,side,lh		Appelez-nous	-
1C	318143201		Deflector-warmer,rear		Appelez-nous	-
21A	316011304		Trim Ring Large, Black				$ 97.23
31A	5303307931		Gasket, Pan		Appelez-nous	-
61A	318083901		Trim Ring Large		Appelez-nous	-
73A	318057101		Deflector, Large		Appelez-nous	-
F22A	316098505		Cap-burner,black ,large				$ 56.28
F81	316093100		Element, Warmer Drawer		Appelez-nous	-
F84	318005101		Thermostat		Appelez-nous	-
NI	134178901		Screw, 8 X 1/2   (Replaces: 5303211311)				$ 14.89
