SELECT A DIAGRAM

01 - Cover


03 - Backguard


05 - Burner


07 - Body


09 - Top/drawer


11 - Door

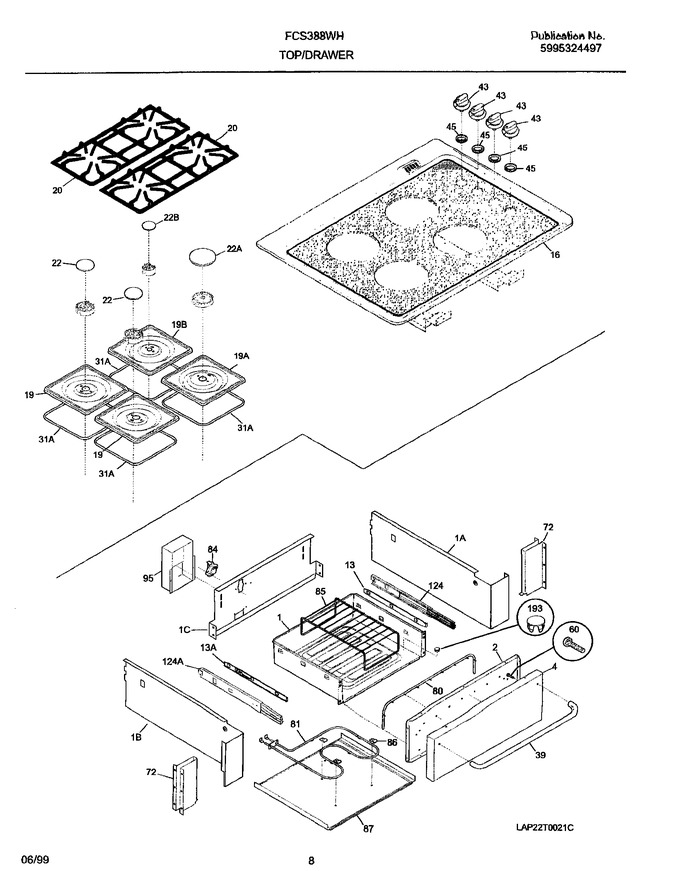

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318142500		Drawer,warmer		Appelez-nous	-
2	318108011		Liner, Drawer		Appelez-nous	-
4	318107900		Panel-drawer, White		Appelez-nous	-
13	316094900		Rail,drawer ,rh Outer		Appelez-nous	-
16	318079203		Main Top-glassblack		Appelez-nous	-
19	318168114		Pan-burner,black				$ 151.68
20	318120402		Grate		Appelez-nous	-
22	316213500		Cap-burner Mid Black   (Replaces: 318076410)				$ 43.23
39	316079500		Handle-drawer, White				$ 289.70
43	318099110		Knob Top Valve				$ 104.42
45	318146200		Bushing-top Burner		Appelez-nous	-
60	240442708		Screw Handle 10-32 X 1-1/8   (Replaces: 5304400794)				$ 8.34
72	318113402		Bracket-slide,(2)		Appelez-nous	-
80	318052700		Seal,door ,warmer Drawer		Appelez-nous	-
85	807328301		Rack, Warmer Drawer   (Replaces: 316093600)				$ 87.21
86	316095800		Clip-hold Down,warmer				$ 9.93
87	318121502		Base-warmer		Appelez-nous	-
95	318143701		Cover-wire		Appelez-nous	-
124	316096500		Channel,drawer ,rh,inner		Appelez-nous	-
193	5304400796		Plug		Appelez-nous	-
124A	316096501		Channel Drawer,lh,inner		Appelez-nous	-
13A	316094901		Rail-drawer,lh,outer		Appelez-nous	-
19A	318168124		Pan,burner ,black ,large				$ 140.67
1A	318143307		Deflector-warmer,side,rh		Appelez-nous	-
1B	318143306		Deflector-warmer,side,lh		Appelez-nous	-
1C	318143202		Deflector-warmer,rear		Appelez-nous	-
22B	318076400		Cap-burner Small Black				$ 25.66
31A	318053901		Gasket-pan   (Replaces: 318053900)				$ 33.60
F19B	318168104		Pan,burner ,black ,small				$ 155.93
F22A	318076420		Cap-burner Large Black		Appelez-nous	-
F81	316093100		Element, Warmer Drawer		Appelez-nous	-
F84	318005101		Thermostat-blower		Appelez-nous	-
NI	5303323221		Washer,fiber		Appelez-nous	-
NI	134178901		Screw, 8 X 1/2   (Replaces: 5303211311)				$ 14.89
NI	08011955		Screw,10-24 X 3/8			Immediately	$ 9.36

    View Diagram in Separate Window       Print Part List
