SELECT A DIAGRAM

01 - Cover

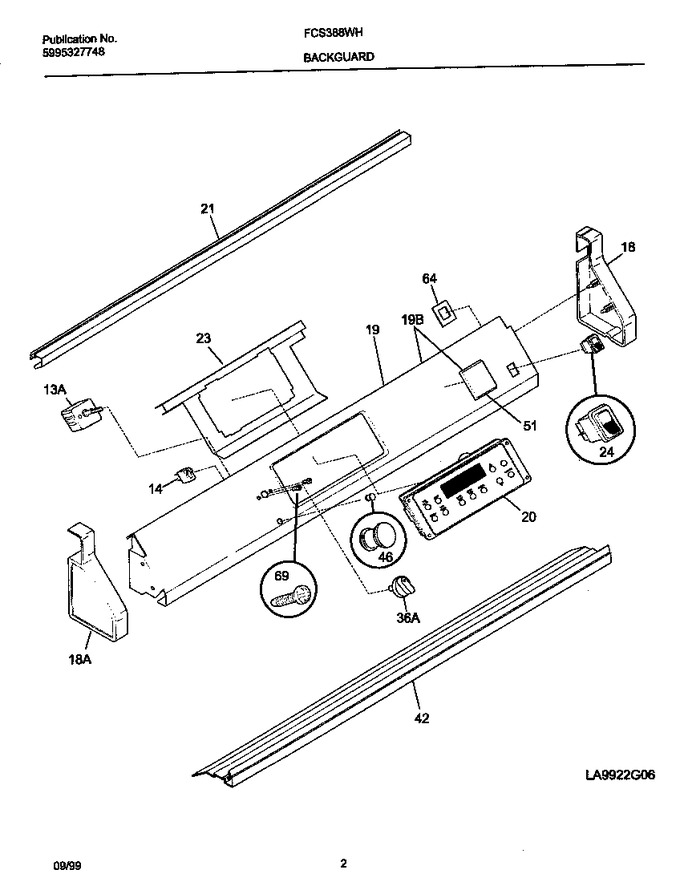

02 - Backguard


03 - Burner


04 - Body


05 - Top/drawer


06 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
13	5304508926		Switch-warmer, Infinite, Drawer/zone   (Replaces: 316095500)			Immediately	$ 84.18
14	5303051533		Light-lamp/indicator				$ 53.81
18	5303300160		End Cap, Black, Rh		Appelez-nous	-
18	5303300161		End Cap, Black, Lh		Appelez-nous	-
19	318005543		Panel-control		Appelez-nous	-
20	318012903		Clock/timer,electronic		Appelez-nous	-
21	318027803		Trim Backguard,top		Appelez-nous	-
23	318015508		Bracket-clock Mtg		Appelez-nous	-
24	316083101		Switch-rocker, Oven Light, Black, Rh				$ 85.01
24	5304527841		Switch-rocker, Oven Light, Black   (Replaces: 316005602)			Immediately	$ 11.38
36	318017600		Knob-warmer				$ 30.14
42	318106903		Trim-backguard,black ,bottom		Appelez-nous	-
46	5308006417		Lens-light/lamp, Indicator, Red, (2)				$ 19.06
51	316082300		Nameplate, Black		Appelez-nous	-
64	318112200		Mtg Rocker Switch		Appelez-nous	-
69	5303288565		Screw, Switch Mtg., 8-32 X 3/16   (Replaces: 5303323134)				$ 3.12
*16080	134178901		Screw, 8 X 1/2   (Replaces: 5303211311)				$ 14.89
*16081	08016432		Screw,truss Head ,8-18 X 0.375 ,(4)		Appelez-nous	-
*16082	5304453707		Screw, 8-32 X 3/8, (6)   (Replaces: 5303311333)			Immediately	$ 15.92
*16083	5303311528		Screw 6-20x5/8 Oval Hd Ab Aqdr,oval Hd ,6-20 X 5/8,black		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
