SELECT A DIAGRAM

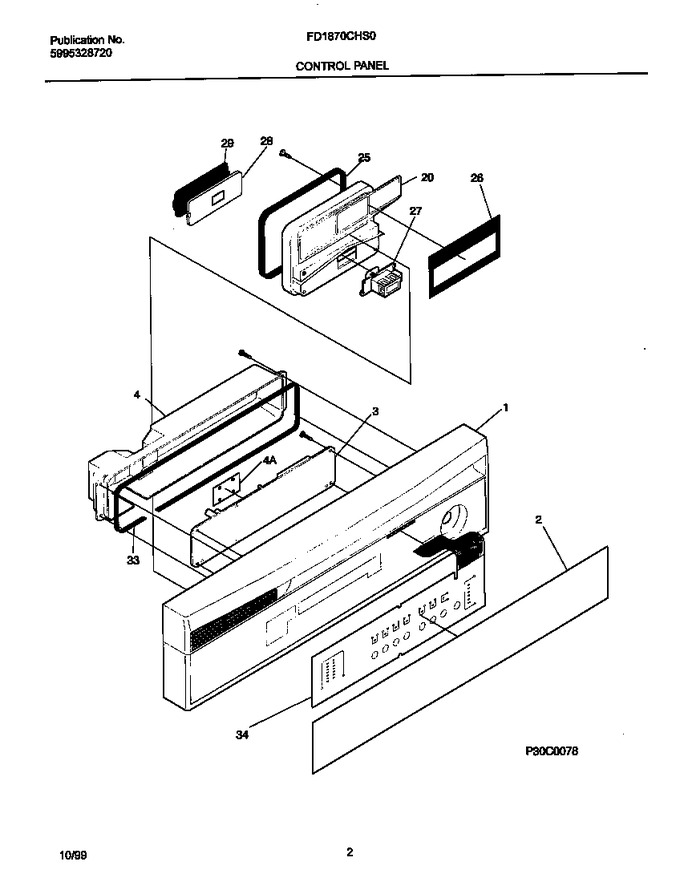

01 - Cover


02 - Control Panel


03 - Door


04 - Tub


05 - Motor


06 - Frame


07 - Rack


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	154222801		Panel-control, White		Appelez-nous	-
2	154362401		Insert-control Pnl,white		Appelez-nous	-
3	154319901		Control				$ 149.26
4	154301301		Cover-pc Protector		Appelez-nous	-
4	154287801		Cover-control		Appelez-nous	-
20	154283701		Vapor Weldment Assy		Appelez-nous	-
25	154303901		Gasket-vent		Appelez-nous	-
26	154229201		Seal-chamber				$ 12.81
27	154226701		Actuator,wax				$ 65.46
28	154226901		Valve-vent		Appelez-nous	-
29	154226401		Gasket-valve				$ 51.14
33	154292401		Gasket-cover		Appelez-nous	-
34	154298501		Keypad, 8 Pad		Appelez-nous	-
*71520	154200401		Screw, 6-10 X 3/8, Pan Plask				$ 8.56
*71521	154283901		Screw,8-10 ,3/8 Phillips				$ 7.56
*71522	154306101		Spacer-pocket Console		Appelez-nous	-
*71523	154753101		Thermister   (Replaces: 154227501)			Immediately	$ 24.80
*71524	154347401		Wiring Harness		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
