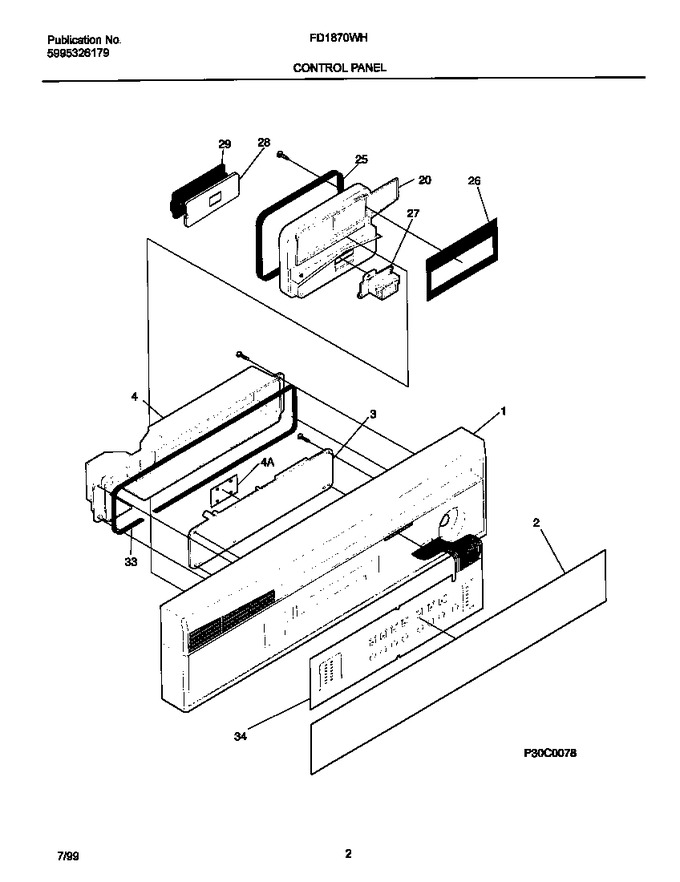

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 154222803 | Panel-control, Black |
|
- | |||||
| 2 | 154362403 | Insert-control Pnl,black |
|
- | |||||
| 3 | 154319901 | Control |
|
$ 149.26 | |||||
| 4 | 154287801 | Cover-control |
|
- | |||||
| 4 | 154301301 | Cover-pc Protector |
|
- | |||||
| 20 | 154283701 | Vapor Weldment Assy |
|
- | |||||
| 25 | 154303901 | Gasket-vent |
|
- | |||||
| 26 | 154229201 | Seal-chamber |
|
$ 12.81 | |||||
| 27 | 154226701 | Actuator,wax |
|
$ 65.46 | |||||
| 28 | 154226901 | Valve-vent |
|
- | |||||
| 29 | 154226401 | Gasket-valve |
|
$ 51.14 | |||||
| 33 | 154292401 | Gasket-cover |
|
- | |||||
| 34 | 154298501 | Keypad, 8 Pad |
|
- | |||||
| *25520 | 154200401 | Screw, 6-10 X 3/8, Pan Plask |
|
$ 8.56 | |||||
| *25521 | 5300809055 | Screw, Cr Truss S.s., 8 .438 |
|
$ 1.21 | |||||
| *25522 | 154753101 | Thermister (Replaces: 154227501) |
|
Immediately | $ 24.80 | ||||
| *25523 | 154306101 | Spacer-pocket Console |
|
- | |||||
| *25524 | 154347401 | Harness-wiring |
|
- | |||||
| *25525 | 154283901 | Screw,8-10 ,3/8 Phillips |
|
$ 7.56 |
