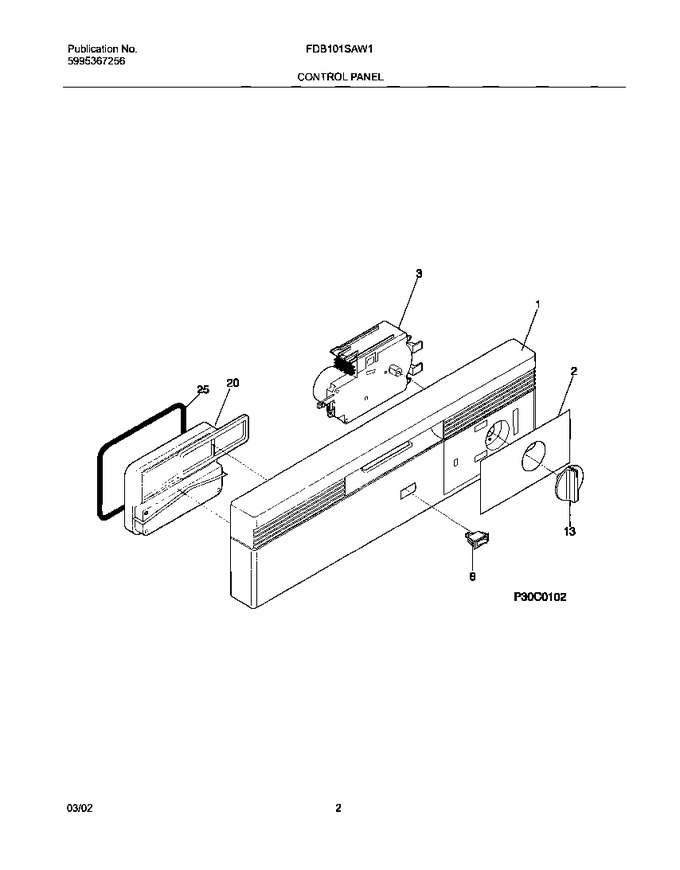

03 - Control Panel


05 - Door


07 - Tub


09 - Motor & Pump


11 - Frame


13 - Racks


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	154398103		Panel-control,black		Appelez-nous	-
2	154401903		Insert,control Panel ,black		Appelez-nous	-
13	154338303		Knob-timer,black				$ 53.50
20	154345102		Vapor Chamber Assy,w/ Vent Gasket		Appelez-nous	-
26	154229201		Seal-chamber				$ 12.81
F3	154396701		Timer		Appelez-nous	-
F8	154240403		Switch,rocker/selector ,black				$ 77.36
NI	154394501		Wiring Harness		Appelez-nous	-
NI	154283901		Screw,no.8-10 ,3/8 Phillips				$ 7.56
NI	154779601		Screw,mtg.   (Replaces: 5303318719)				$ 1.42
NI	154399001		Label,energy Guide		Appelez-nous	-
