SELECT A DIAGRAM

01 - Cover


03 - Control Panel


05 - Door


07 - Tub


09 - Motor & Pump


11 - Frame


13 - Racks

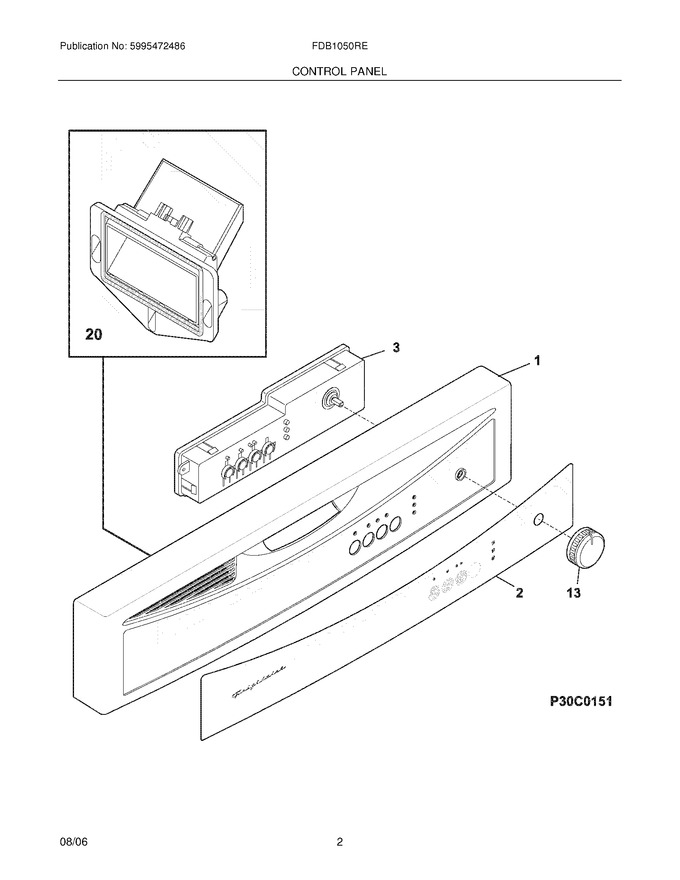

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	154534904		Panel,control ,bisque				$ 89.93
2	154535204		Insert,control Panel ,bisque ,4 Button				$ 179.18
13	154535904		Knob,control ,bisque		Appelez-nous	-
20	154433001		Vent Assy,static Dry				$ 50.82
F3	154568401		Control Module,4 Button ,w/selector		Appelez-nous	-
NI	154540027		Energy Guide Label		Appelez-nous	-
NI	154436201		Screw,dry Duct ,(3)		Appelez-nous	-
NI	154553401		Wiring Harness,main		Appelez-nous	-
NI	154753101		Thermistor   (Replaces: 154227501)			Immediately	$ 24.80
NI	808326801		Screw,no.8-18 X .375   (Replaces: 154409401)				$ 2.84

    View Diagram in Separate Window       Print Part List
