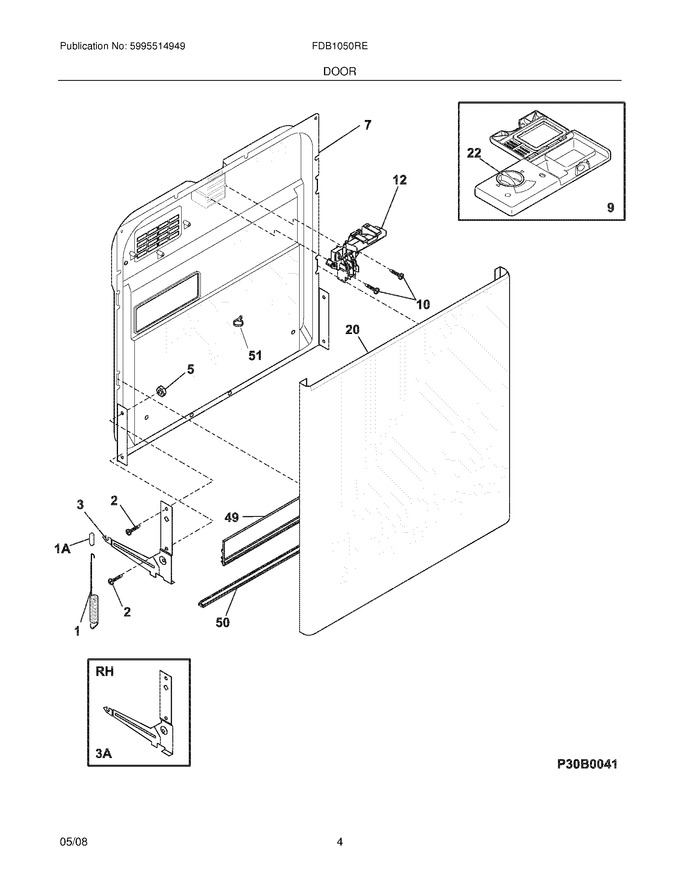

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 154430501 | Spring,door ,(2) |
|
Immediately | $ 36.31 | ||||
| 2 | 154093301 | Screw,arm Assy ,(4) |
|
Immediately | $ 2.12 | ||||
| 3 | 5304513274 | Arm Assy,lh (Replaces: 154597503) |
|
Immediately | $ 66.56 | ||||
| 5 | 154079601 | Nut,arm Assy ,and Handle Mtg. |
|
$ 0.41 | |||||
| 7 | 154494601 | Liner,door Assy. |
|
$ 239.60 | |||||
| 9 | 154574401 | Dispenser,det/rinse Aid ,w/o Reed |
|
Immediately | $ 102.77 | ||||
| 10 | 154103702 | Screw-latch Mtg, (2) |
|
$ 13.46 | |||||
| 20 | 154538304 | Door,bisque |
|
$ 150.89 | |||||
| 22 | 154388801 | Cap,rinse Aid |
|
Immediately | $ 26.03 | ||||
| 49 | 809006501 | Gasket,door Wiper (Replaces: 154588201) |
|
Immediately | $ 36.22 | ||||
| 50 | 154211401 | Support-door Hinge |
|
$ 25.69 | |||||
| 51 | 154320301 | Clamp,drip Loop ,wire |
|
$ 62.69 | |||||
| 1A | 154325201 | Linkage,door Spring ,(2) |
|
Immediately | $ 27.27 | ||||
| 3A | 5304513274 | Arm Assy,rh (Replaces: 154596103) |
|
Immediately | $ 66.56 | ||||
| F12 | A00099902 | Latch Assy,bisque (Replaces: 154556704) |
|
Immediately | $ 93.26 | ||||
| NI | 808326801 | Screw,no.8-18 X .375 (Replaces: 154409401) |
|
$ 2.84 | |||||
| NI | 154529101 | Pin,arm Assy |
|
$ 4.62 | |||||
| NI | 154294701 | Screw,no.7 Plas .375 ,(6) ,disp. Assy. |
|
$ 9.22 | |||||
| NI | 5304428306 | Screw,door Mtg. ,(2) |
|
$ 4.67 |
