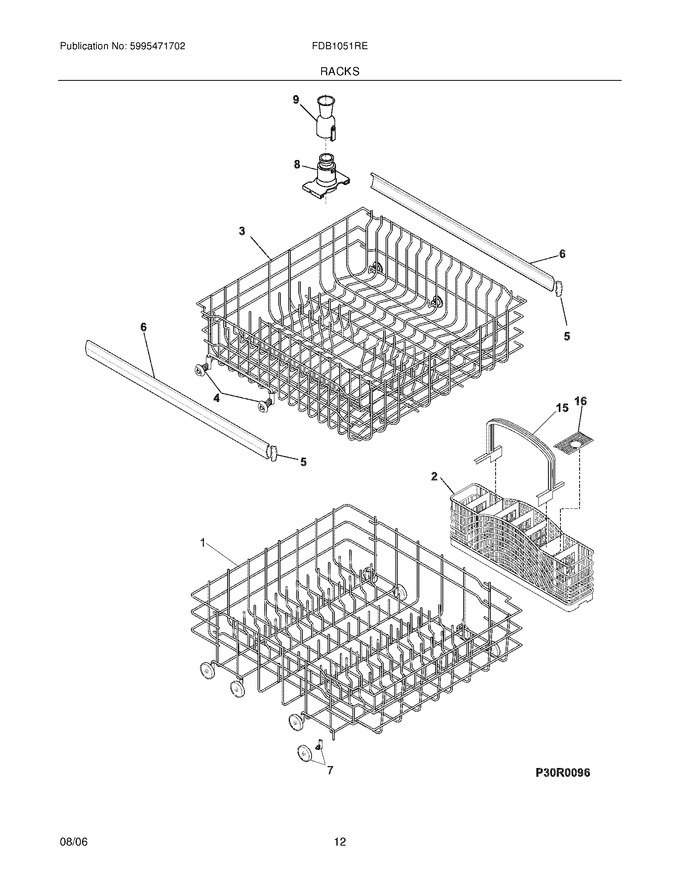

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304535768 | Rack Assy,lower (Replaces: 154319706) |
|
Immediately | $ 162.61 | ||||
| 2 | 5304535382 | Basket-silverware (Replaces: 154295201) |
|
Immediately | $ 25.43 | ||||
| 3 | 140229954072 | Rack Assy-upper (Replaces: 154319506) |
|
Immediately | $ 145.13 | ||||
| 4 | 154522902 | Wheel & Bushing Assy,upper Rack ,(8) (Replaces: 154522901) |
|
$ 39.54 | |||||
| 5 | 5300809927 | Cap,slide ,(4) |
|
Immediately | $ 3.69 | ||||
| 6 | 154597801 | Slide,rack ,(2) (Replaces: 154232701) |
|
Immediately | $ 9.36 | ||||
| 7 | 5304532229 | Wheel & Bracket Assy,lower Rack (Replaces: 154174502) |
|
Immediately | $ 12.75 | ||||
| 8 | 154728001 | Base-funnel (Replaces: 154304001) |
|
$ 27.03 | |||||
| 9 | 154251801 | Funnel |
|
$ 49.88 | |||||
| 15 | 5304535382 | Handle,basket ,silverware (Replaces: 154254001) |
|
Immediately | $ 25.43 | ||||
| 16 | 154254101 | Cover,basket ,white ,silverware |
|
- |
