02 - Backguard


03 - Main Top


04 - Body


05 - Oven Door


06 - Lit/optional

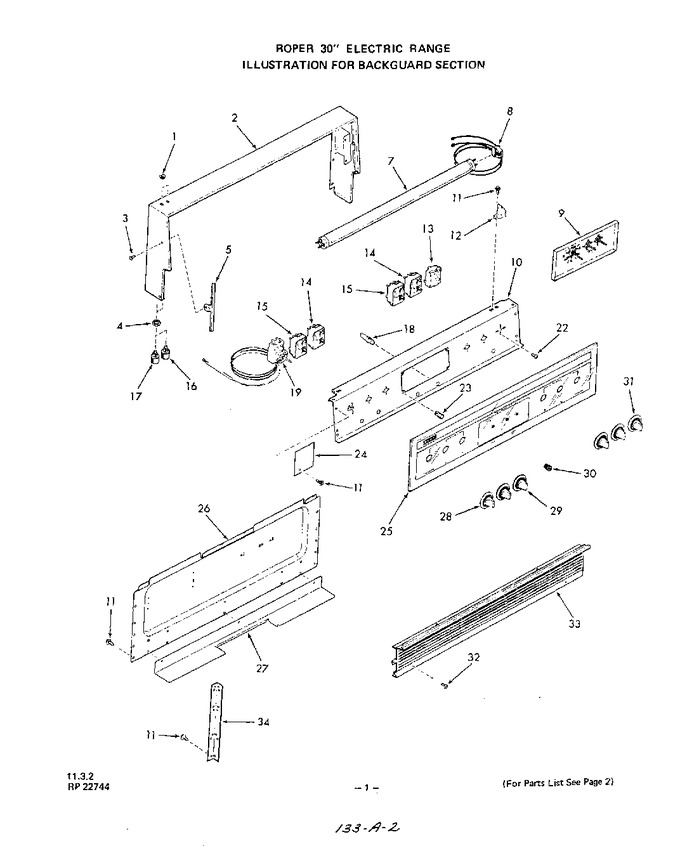

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	87403		Knurled Nut		Appelez-nous	-
2	296584		Frame-backguard		Appelez-nous	-
3	295268		Screw 6-32x3/8``		Appelez-nous	-
4	236129		Pal Nut		Appelez-nous	-
5	299705		End Trim- Top Lamp Glass (lt. Or Rt.)		Appelez-nous	-
7	71734		Fluorescent Lamp (20 W - 24``)		Appelez-nous	-
8	237316		Holder-fluorescent Lamp (left)		Appelez-nous	-
8	113745		Holder-fluorescent Lamp (right)		Appelez-nous	-
9	315267		Clock W/1 Hr Timer		Appelez-nous	-
10	307688		Mounting Panel-controls		Appelez-nous	-
11	WP112432		Screw 10-32x7/16``   (Replaces: 311484)				$ 7.16
12	DD67-00074A		Bracket-fluorescent Lamp (rt. Or Lt.)   (Replaces: 113236)			Immediately	$ 1.66
13	320942		Selector Switch		Appelez-nous	-
14	324609		Infinite Switch Control-rt. Front & Lt. Rear		Appelez-nous	-
15	324608		Infinite Switch Control-lt. Front & Rt. Rear		Appelez-nous	-
16	DE81-03691A		Push Switch-fluorescent Lamp   (Replaces: 105386)				$ 99.00
17	283523		Push Switch-oven Light		Appelez-nous	-
18	296316		Indicator Light (oven)		Appelez-nous	-
18	296317		Indicator Light (surface)		Appelez-nous	-
19	320937		Oven Thermostat		Appelez-nous	-
22	78565		Screw 8-32x3/16``		Appelez-nous	-
23	293577		Tubular Clip (4 Req.)		Appelez-nous	-
24	300330		Shield Switch		Appelez-nous	-
25	324095		Top Lamp Glass		Appelez-nous	-
26	302906		Wire Cover-backguard		Appelez-nous	-
27	323123		Bottom-backguard Wire Cover		Appelez-nous	-
28	324098		Knob-thermostat		Appelez-nous	-
29	320899		Knob-infinite Switch Control (4 Req.)		Appelez-nous	-
30	109225		Knob-clock (start & Stop Time) (3)		Appelez-nous	-
31	324097		Knob-selector Switch		Appelez-nous	-
32	295268		Screw 6-32x3/8``		Appelez-nous	-
33	313668		Bottom Front-backguard		Appelez-nous	-
34	319361		Support-backguard (lt. Or Rt.)		Appelez-nous	-
