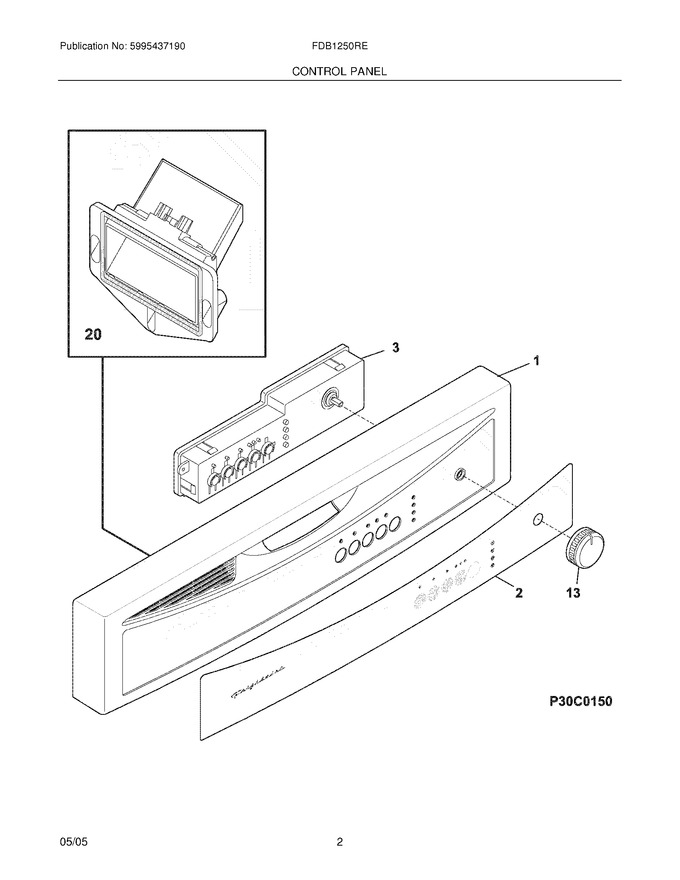

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	154534804		Panel,control ,bisque		Appelez-nous	-
2	154535104		Insert,control Panel ,bisque ,5 Button		Appelez-nous	-
13	154535904		Knob,control ,bisque		Appelez-nous	-
20	154433001		Vent Assy,static Dry				$ 50.82
F3	154568301		Control Module,5 Button ,w/selector   (Replaces: 154547601)				$ 315.20
NI	154783101		Screw,phillips ,8-10 X .7   (Replaces: 154282901)			Immediately	$ 7.09
NI	154753101		Thermistor   (Replaces: 154227501)			Immediately	$ 24.80
NI	154540028		Energy Guide Label		Appelez-nous	-
NI	808326801		Screw,no.8-18 X .375   (Replaces: 154409401)				$ 2.84
NI	5303322387		Screw,truss Head ,no.8,1.5`` ,stainless Steel				$ 2.54
NI	154436201		Screw,dry Duct ,(3)		Appelez-nous	-
NI	154553301		Wiring Harness,main		Appelez-nous	-
