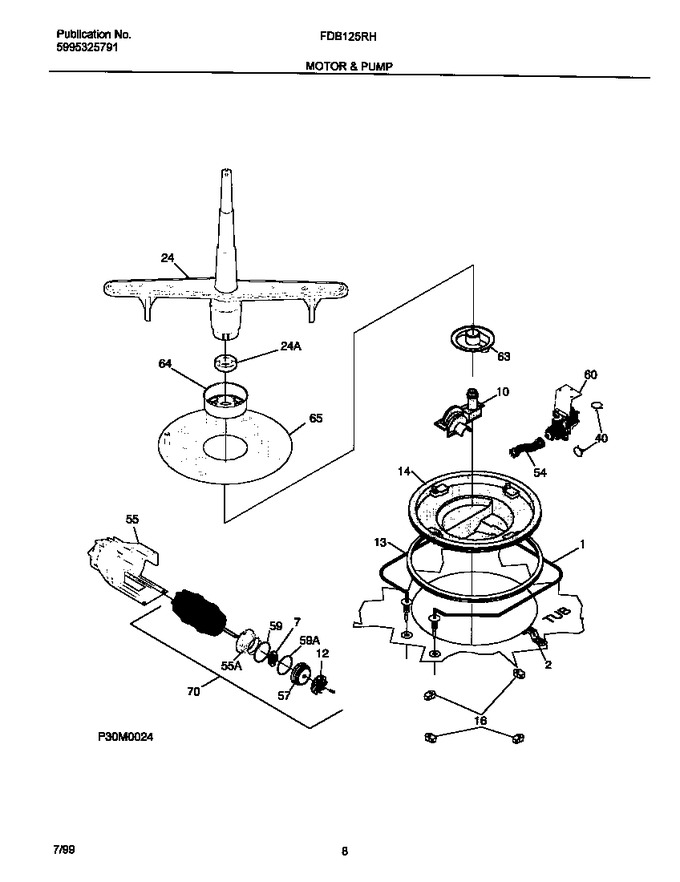

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	154665201		Heater   (Replaces: 154247601)			Immediately	$ 78.97
2	154322501		Bracket-heater		Appelez-nous	-
7	154245901		Macerator				$ 7.35
10	154335301		Cover-volute				$ 69.30
12	154245801		Impeller				$ 17.73
13	154246801		Gasket-sump				$ 52.17
14	154335402		Housing-sump		Appelez-nous	-
16	154246502		Retainer, Sump			Immediately	$ 40.40
24	154335201		Nut-arm Support,arm Support			Immediately	$ 44.10
24	5304518927		Spray Arm-lower,w/tower   (Replaces: 154335802)			Immediately	$ 47.00
40	154611101		Clamp-hose   (Replaces: 154106801)				$ 12.05
54	154234401		Hose,connector				$ 68.68
55	154246201		Bracket-motor,front		Appelez-nous	-
55	154325701		Bracket-motor		Appelez-nous	-
57	154246001		Barrel,front				$ 46.88
59	154247001		O-ring,front			Immediately	$ 56.70
59	154246901		O-ring,rear			Immediately	$ 56.70
60	154247502		Drain Pump Assy		Appelez-nous	-
63	5304532205		Base,soil Director   (Replaces: 154252201)			Immediately	$ 13.74
64	5304532205		Filter-soil Director   (Replaces: 154332602)			Immediately	$ 13.74
65	140281806020		Filter-polypro   (Replaces: 154252401)			Immediately	$ 8.85
70	154291504		Motor & Pump Assy,includes 7, 12 , 55a, 57, 59,,59a		Appelez-nous	-
*80091	154106202		Nut,heater ,(2)   (Replaces: 154106201)			Immediately	$ 18.32
*80092	154289801		Shield-heater Terminal				$ 7.33
*80093	154282701		Screw,ss Impeller				$ 2.54
*80094	154348401		Clamp,red ,pump				$ 32.96
*80095	154348501		Clamp,silver ,pump				$ 33.02
*80096	154246101		Barrel,rear				$ 27.67
*80097	154234501		Bracket,motor ,drain		Appelez-nous	-
*80098	154200601		Screw-10-16 X 3/8				$ 7.98
*80099	154338601		Clamp-p,nylon		Appelez-nous	-
*80100	5303316032		Screw,truss Ss ,8 .625				$ 10.45
