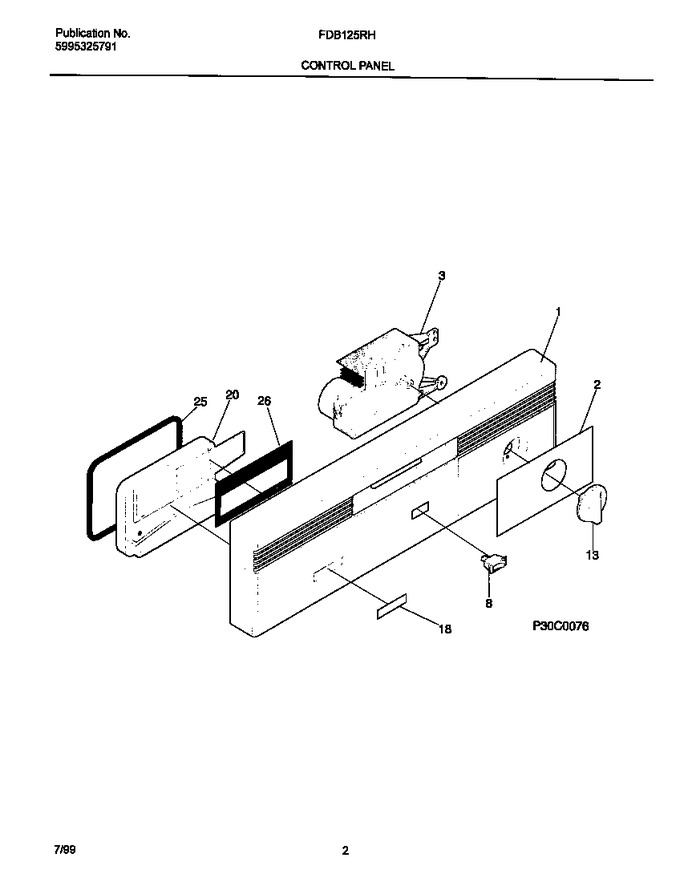

02 - Control Panel
03 - Door
04 - Tub
05 - Motor
06 - Frame
07 - Rack
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 154338803 | Panel-control,pad Printed ,plastic ,black |
|
- | |||||
| 2 | 154348003 | Insert-control Pnl,black |
|
- | |||||
| 3 | 154347701 | Timer |
|
- | |||||
| 8 | 154240403 | Switch-selector,rocker ,black |
|
$ 77.36 | |||||
| 13 | 154338303 | Knob-timer,black |
|
$ 53.50 | |||||
| 18 | 316095420 | Nameplate,black |
|
- | |||||
| 20 | 154327301 | Vapor Chamber Assy |
|
- | |||||
| 25 | 154303901 | Gasket-vent |
|
- | |||||
| 26 | 154229201 | Seal-chamber |
|
$ 12.81 | |||||
| *80080 | 154779601 | Screw,mtg. (Replaces: 5303318719) |
|
$ 1.42 | |||||
| *80081 | 154283901 | Screw,8-10 ,3/8 Phillips |
|
$ 7.56 | |||||
| *80082 | 154347902 | Harness-wiring |
|
- |
