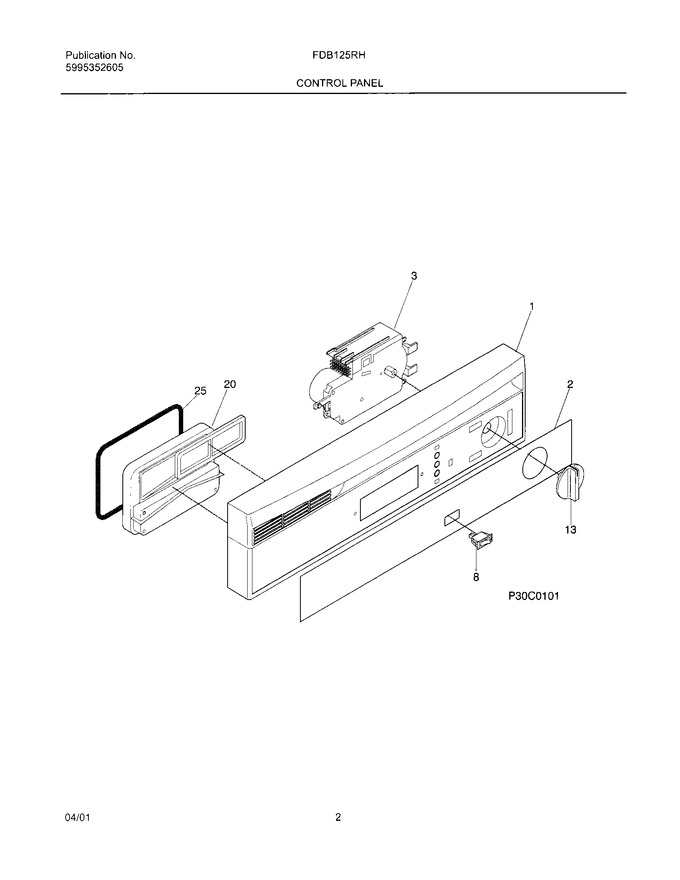

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	154398101		Panel-control,white		Appelez-nous	-
2	154400701		Insert-control Pnl,white		Appelez-nous	-
3	154393901		Timer				$ 285.02
8	154240401		Switch-selector,rocker ,white				$ 59.43
13	154338301		Knob-timer,white				$ 75.60
20	154345102		Vapor Chamber Assy,w/ Vent Gasket		Appelez-nous	-
26	154229201		Seal-chamber				$ 12.81
NI	154779601		Screw,mtg.   (Replaces: 5303318719)				$ 1.42
NI	154394501		Wiring Harness		Appelez-nous	-
NI	154283901		Screw,8-10 ,3/8 Phillips				$ 7.56
