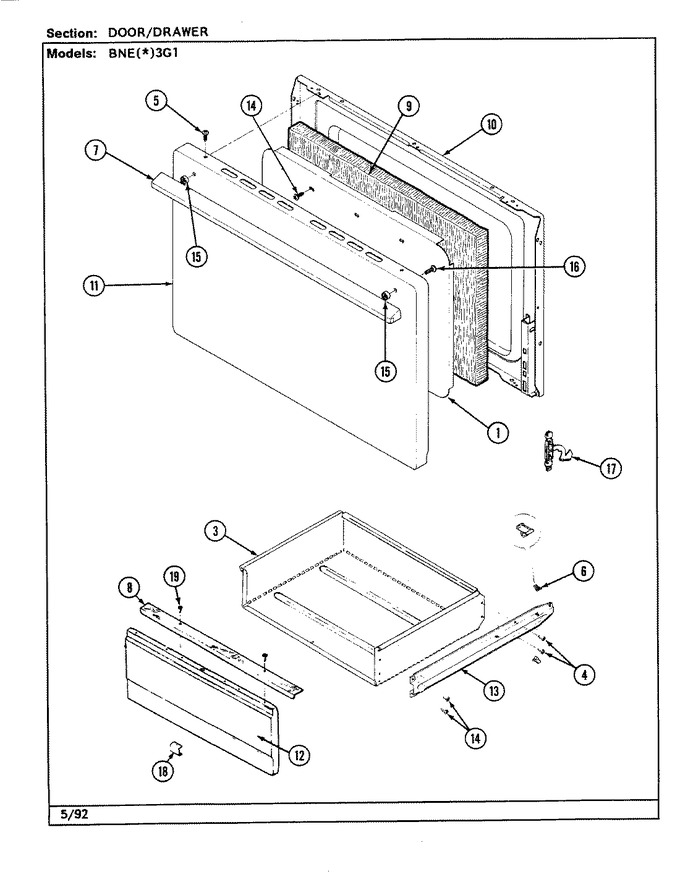

SELECT A DIAGRAM

01 - Body


02 - Control Panel


03 - Door/drawer


04 - Oven


05 - Top Assembly


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3601F026-51		Baffle	01	Appelez-nous	-
2	W11233072		Screw (zinc)   (Replaces: 7101P041-60)	01		Immediately	$ 12.62
2	3802F044-51		Brace, Drawer	01	Appelez-nous	-
3	3405F008-80		Drawer, Service	01	Appelez-nous	-
4	WP7101P126-60		Screw   (Replaces: 7101P058-60)	01		Immediately	$ 6.85
5	7101P287-60		Screw, Metal Grounding	01			$ 12.03
6	8016P004-60		Glide, Drawer	01	Appelez-nous	-
6	8016P009-60		Glide, Drawer	01	Appelez-nous	-
7	7701P030-60		Handle, Door (chr)	01	Appelez-nous	-
8	2411F001-74		Handle Door Alm	01	Appelez-nous	-
9	7002P013-60		Insulation	01	Appelez-nous	-
10	2402W155-19		Lining, Oven Door	01	Appelez-nous	-
11	2401F041-74		Panel, Oven Dr-a	01	Appelez-nous	-
12	2416F006-64		Panel, Drwr (almond)	01	Appelez-nous	-
13	3406F026-80		Runner, Inner	01	Appelez-nous	-
14	WP7101P126-60		Screw   (Replaces: 7101P061-60)	01		Immediately	$ 6.85
15	8010P002-60		Spacer, Handle	01	Appelez-nous	-
16	WP3387230		Screw, Clamp   (Replaces: 7101P080-60)	01		Immediately	$ 7.69
17	3420A033-34		Stop, Oven Door	01	Appelez-nous	-
18	3801F031-51		Bracket	01	Appelez-nous	-
19	W11233072		Screw (zinc)   (Replaces: 7101P041-60)	01		Immediately	$ 12.62

    View Diagram in Separate Window       Print Part List
