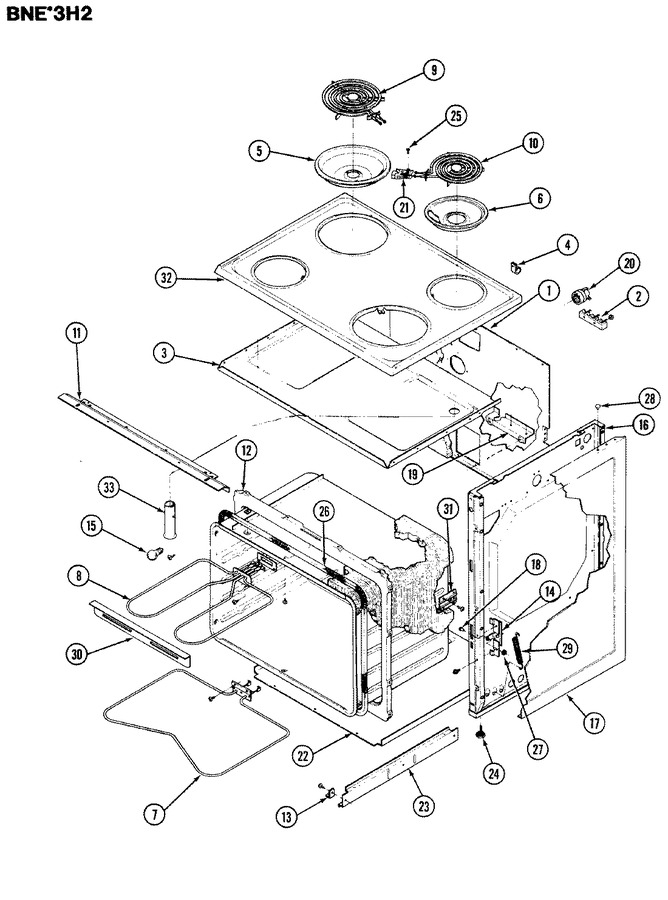

01 - Body
02 - Control Panel
03 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7401A032-60 | Block, Fuse Assy. | 1 |
|
- | ||||
| 1 | 4002F108-80 | Back, Main | 1 |
|
- | ||||
| 2 | WPW10245259 | Block, Terminal (Replaces: 7401P002-60) | 1 |
|
Immediately | $ 31.65 | |||
| 3 | 3801F198-51 | Bracket, Tie-down | 1 |
|
- | ||||
| 3 | 4011F128-23 | Bottom, Burner Box | 1 |
|
- | ||||
| 3 | 3802F029-80 | Brace, Main Top | 1 |
|
- | ||||
| 3 | 3802F003-80 | Brace | 1 |
|
- | ||||
| 4 | 4005F278-45 | Cover, Plate | 1 |
|
- | ||||
| 4 | 7111P002-60 | Clamp, Wire 3/4 | 1 |
|
- | ||||
| 4 | 7112P030-60 | Clip, Top Retainer | 1 |
|
- | ||||
| 4 | WP7112P004-60 | Clip, Thermostat (Replaces: 7112P004-60) | 1 |
|
Immediately | $ 11.07 | |||
| 5 | 7725P011-60 | Bowl, Drip Giant | 1 |
|
- | ||||
| 6 | 7725P010-60 | Bowl, Drip Std. | 1 |
|
- | ||||
| 7 | WPY04000041 | Element,bake (Replaces: 7406P010-60) | 1 |
|
$ 133.20 | ||||
| 8 | WPY04000048 | Element,broil (Replaces: 7406P003-60) | 1 |
|
$ 160.58 | ||||
| 9 | WP3191454 | Element (8``) (Replaces: 7406P015-60) | 1 |
|
$ 163.63 | ||||
| 10 | WP660532 | Element (6``) (Replaces: 7406P018-60) | 1 |
|
Immediately | $ 36.90 | |||
| 11 | 4012F007-80 | Frame, Burner Box | 1 |
|
- | ||||
| 12 | 2201F060-23 | Front, Oven Upper | 1 |
|
- | ||||
| 12 | 7416P005-60 | Fuse, 125v 20a | 1 |
|
- | ||||
| 12 | 7416P006-60 | Fuse, 125v 15a | 1 |
|
- | ||||
| 13 | 8016P005-60 | Glide, Front | 1 |
|
- | ||||
| 14 | 3413F002-23 | Insert, Broil Pan | 1 |
|
- | ||||
| 14 | 3418A029-34 | Hinge Assy. (lt) | 1 |
|
$ 48.47 | ||||
| 14 | 3418A030-34 | Hinge Assy. (rt) | 1 |
|
- | ||||
| 14 | 4001F016-23 | Housing, Lamp | 1 |
|
- | ||||
| 15 | 40A15 | Bulb, Oven (Replaces: 7407P026-60) | 1 |
|
Immediately | $ 1.98 | |||
| 16 | 4009W033-80 | Lining Assy, Inner Side | 1 |
|
- | ||||
| 16 | 4396923 | Pan, Broil (Replaces: 3401F004-23) | 1 |
|
Immediately | $ 52.04 | |||
| 17 | 2618F052-71 | Panel, Side (wht) | 1 |
|
- | ||||
| 17 | 2618F052-76 | Panel, Side (hv Wht) | 1 |
|
- | ||||
| 17 | 2618F052-74 | Panel, Side (alm) | 1 |
|
- | ||||
| 18 | 7113P002-60 | Pin, Hinge | 1 |
|
$ 9.05 | ||||
| 19 | 7801P030-60 | Rack, Oven | 1 |
|
$ 57.14 | ||||
| 19 | 3605F153-80 | Plate, Conduit | 1 |
|
- | ||||
| 20 | 7408P002-60 | Receptacle, Lamp | 1 |
|
- | ||||
| 21 | 12001676 | Receptacle, Surface Top (Replaces: 7408P016-60) | 1 |
|
Immediately | $ 28.45 | |||
| 21 | 7107P017-60 | Rivet | 1 |
|
- | ||||
| 22 | 3406F025-51 | Runner,outer | 1 |
|
- | ||||
| 23 | Y7101P25460 | Leg, Leveling | 1 |
|
- | ||||
| 24 | WP74004005 | Screw (Replaces: 7101P042-60) | 1 |
|
$ 6.95 | ||||
| 25 | 3604F017-45 | Shield | 1 |
|
- | ||||
| 25 | 7212P002-60 | Seal, Oven | 1 |
|
- | ||||
| 26 | 7112P019-60 | Clip, Hinge Pin | 1 |
|
- | ||||
| 27 | 8010P048-60 | Spacer, Main Top | 1 |
|
- | ||||
| 28 | WP7803P058-60 | Spring, Ov Dr (Replaces: 7803P055-60) | 1 |
|
$ 16.55 | ||||
| 29 | 3807F176-15 | Support, Broil Element | 1 |
|
- | ||||
| 30 | 3807F205-45 | Support, Oven Rear | 1 |
|
- | ||||
| 31 | 2002W028-84 | Top Assy, Main | 1 |
|
- | ||||
| 31 | 2002W028-81 | Top, Main (white) | 1 |
|
- | ||||
| 31 | 2002W028-86 | Top, Main (harvest) | 1 |
|
- | ||||
| 32 | 8026P003-60 | Tube, Oven Vent | 1 |
|
- | ||||
| 32 | 7506P085-60 | Tube, Wire | 1 |
|
- | ||||
| 32 | 7402P036-60 | Cord, Power | 1 |
|
- | ||||
| 33 | 8112P015-60 | Manual, Use & Care | 1 |
|
- |
