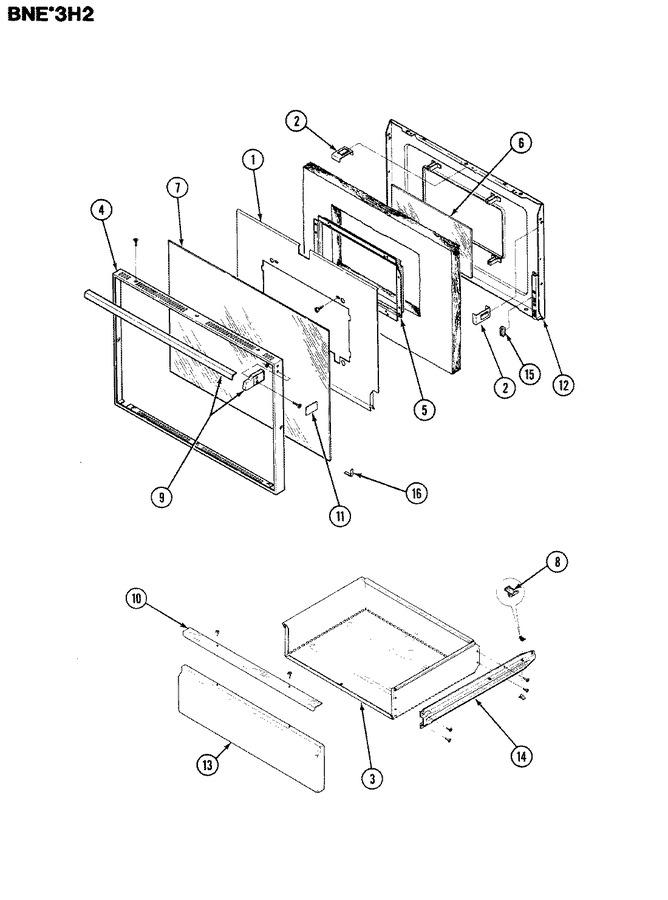

03 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3802F044-51 | Brace, Drawer | 1 |
|
- | ||||
| 1 | 3601F094-51 | Baffle, Oven Door | 1 |
|
- | ||||
| 1 | 3801F031-51 | Bracket | 1 |
|
- | ||||
| 2 | 7112P034-60 | Clip, Door | 1 |
|
- | ||||
| 3 | 3405F008-80 | Drawer, Service | 1 |
|
- | ||||
| 4 | 7706P243-60 | Frame, Door | 1 |
|
- | ||||
| 5 | 3603F013-80 | Frame, Window----na | 1 |
|
- | ||||
| 6 | 7902P035-60 | Glass, Door Inner | 1 |
|
- | ||||
| 7 | 7902P274-60 | Glass, Door | 1 |
|
- | ||||
| 8 | 8016P004-60 | Glide, Drawer | 1 |
|
- | ||||
| 9 | 7701P047-60 | Handle, Door | 1 |
|
- | ||||
| 10 | 7701P014-71 | Handle, Door White | 1 |
|
- | ||||
| 10 | 7701P014-74 | Handle, Drawer Almond | 1 |
|
- | ||||
| 10 | 7701P014-76 | Handle, Door Harvest | 1 |
|
- | ||||
| 11 | 7728P012-60 | Insert, Oven Door Handle | 1 |
|
- | ||||
| 12 | 2402W091-23 | Lining Assy, Ov Dr | 1 |
|
- | ||||
| 13 | 2416F006-74 | Panel, Service Drawer Almond | 1 |
|
- | ||||
| 13 | 2416F006-71 | Panel, Service Drawer White | 1 |
|
- | ||||
| 13 | 2416F006-76 | Panel, Service Drawer Hvt. Whe | 1 |
|
- | ||||
| 14 | 3406F020-80 | Runner, Inner | 1 |
|
- | ||||
| 15 | WP854334 | Seal, Rubber (Replaces: 7208P011-60) | 1 |
|
$ 11.95 | ||||
| 16 | 8010P045-60 | Spacer, Glass Corner | 1 |
|
- |
