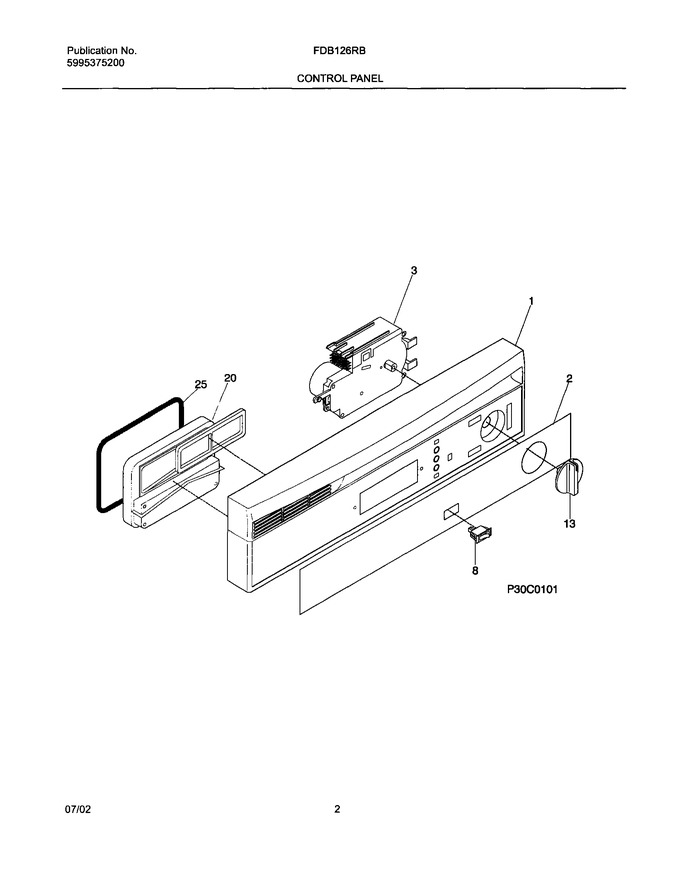

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	154368304		Panel,control ,bisque				$ 197.51
2	154432804		Insert,control Panel ,bisque		Appelez-nous	-
13	154239508		Knob,timer ,bisque		Appelez-nous	-
20	154345102		Vapor Chamber Assy,w/ Vent Gasket		Appelez-nous	-
26	154229201		Seal-chamber				$ 12.81
F3	154393902		Timer		Appelez-nous	-
F8	154240404		Switch,rocker/selector ,bisque		Appelez-nous	-
NI	154420701		Wiring Harness		Appelez-nous	-
NI	154399001		Label,energy Guide		Appelez-nous	-
NI	154779601		Screw,mtg.   (Replaces: 5303318719)				$ 1.42
NI	154283901		Screw,no.8-10 ,3/8 Phillips				$ 7.56
