01 - Freezer Compartment


02 - Freezer Door


03 - Fresh Food Compartment


04 - Fresh Food Door


05 - Unit Compartment & System

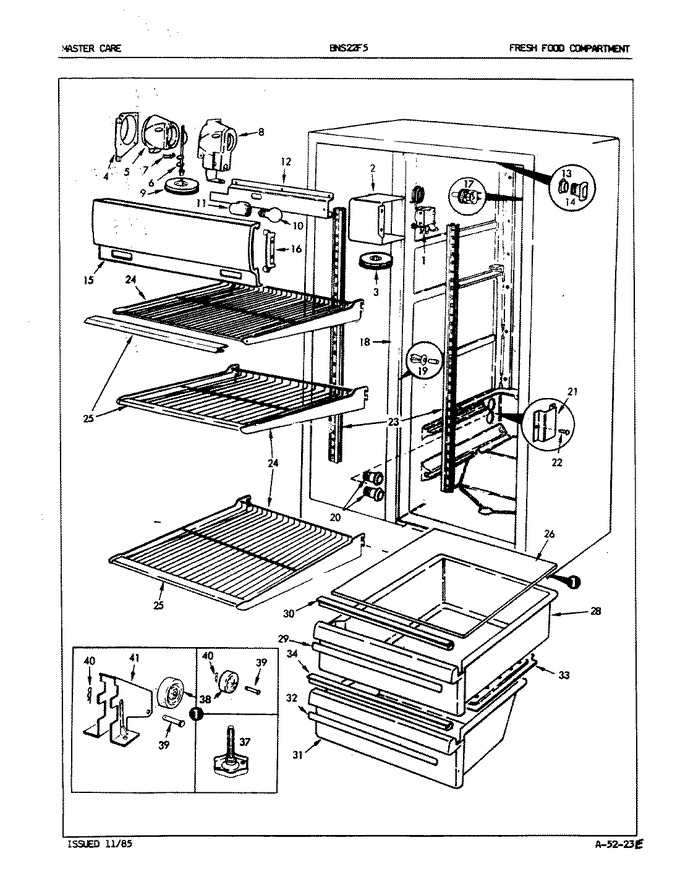

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	65268-2		Control, Temperature		Appelez-nous	-
2	WP489478		Screw   (Replaces: 400017-1)				$ 6.98
2	53682-10		Housing, Temperature Control		Appelez-nous	-
3	29893-5		Knob		Appelez-nous	-
4	53835-2		Orifice, Freezer Control		Appelez-nous	-
5	58767-1		Insulation, Housing		Appelez-nous	-
6	52587-2		Damper		Appelez-nous	-
7	52648-1		Spring, Baffle		Appelez-nous	-
8	58760-2		Housing, Freezer Control		Appelez-nous	-
8	400027-1		Screw		Appelez-nous	-
9	29893-6		Knob		Appelez-nous	-
9	402005-103		Screw		Appelez-nous	-
10	W10887190		Bulb, Light   (Replaces: 55771)			Immediately	$ 16.48
11	29814-2		Receptacle, Light		Appelez-nous	-
12	WP489478		Screw   (Replaces: 400017-1)				$ 6.98
12	59740-2		Housing, Light Socket & Wires		Appelez-nous	-
13	57410-1		Tunnel		Appelez-nous	-
14	57411-1		Retainer		Appelez-nous	-
15	65578-2		Shield, Light		Appelez-nous	-
16	WP489478		Screw   (Replaces: 400017-1)				$ 6.98
16	53686-2		Support		Appelez-nous	-
17	56432-2		Switch		Appelez-nous	-
18	59026-1-AM		Mullion		Appelez-nous	-
19	59920-6		Stud (alm)		Appelez-nous	-
19	53060-4		Clip		Appelez-nous	-
19	59920-9		Stud, (alm)		Appelez-nous	-
20	53726-1		Air Tunnel		Appelez-nous	-
21	62128-1		Air Deflector		Appelez-nous	-
22	28013-2		Rivet, Air Tunnel		Appelez-nous	-
23	58381-1		Support		Appelez-nous	-
23	400037-1		Screw		Appelez-nous	-
24	65606-2		Shelf, Wire		Appelez-nous	-
25	65614-2		Trim		Appelez-nous	-
26	65687-2		Shelf, Crisper		Appelez-nous	-
28	65769-2		Pan, Crisper		Appelez-nous	-
29	65583-10		Insert		Appelez-nous	-
30	65593-2		Seal		Appelez-nous	-
31	65770-2		Pan, Meat		Appelez-nous	-
32	65583-10		Insert		Appelez-nous	-
33	65608-2		Cover, Meat Pan		Appelez-nous	-
34	65648-2		Seal, Meat Pan (front)		Appelez-nous	-
37	W11117769		Leg, Leveling   (Replaces: 6012-8)			Immediately	$ 16.61
38	29834-2		Wheel		Appelez-nous	-
39	62580-1		Pivot Pin, Wheel (rear)		Appelez-nous	-
40	62581-1		Clip, Retaining Wheel (rear)		Appelez-nous	-
41	57418-1		Clip,food Liner Mount.(slides)		Appelez-nous	-
41	56438-1		Clip, Food Liner Mount.top&bot		Appelez-nous	-
41	400062-1		Screw		Appelez-nous	-
41	52846-1		Bracket		Appelez-nous	-
