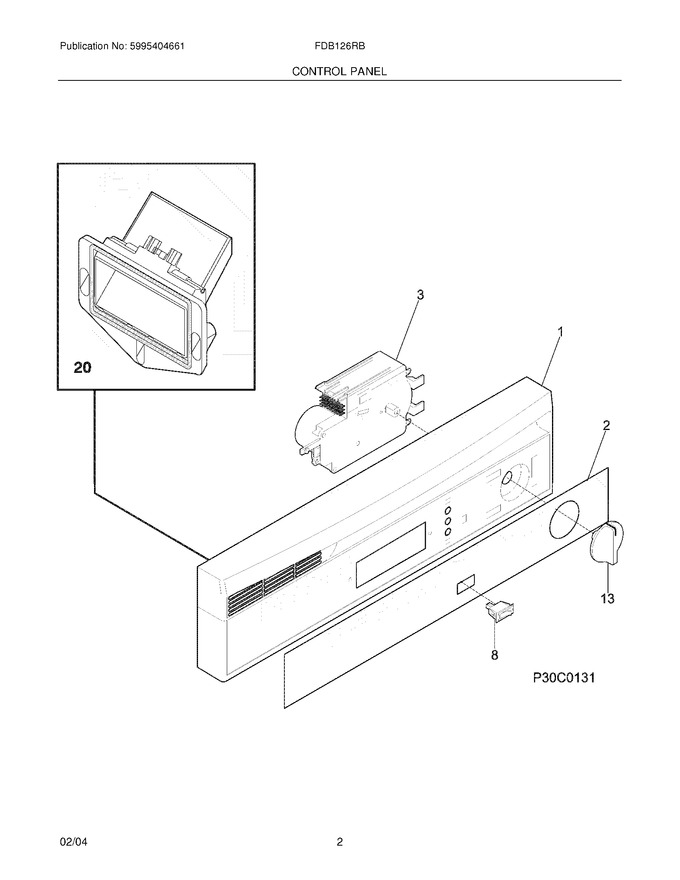

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	154368301		Panel-control,white		Appelez-nous	-
2	154432801		Insert,control Panel ,white				$ 38.75
13	154239504		Knob-timer, White				$ 67.04
20	154433001		Vent Assy,static Dry				$ 50.82
F3	154437501		Timer				$ 262.92
F8	154240401		Switch,rocker/selector ,white				$ 59.43
NI	154399001		Label,energy Guide		Appelez-nous	-
NI	154436201		Screw,dry Duct ,(3)		Appelez-nous	-
NI	154475001		Harness,wiring				$ 200.66
NI	154131204		Shield-timer		Appelez-nous	-
NI	154095701		Screw,thread Rolling ,(2) ,timer				$ 10.34
NI	154779601		Screw,mtg.   (Replaces: 5303318719)				$ 1.42
