SELECT A DIAGRAM

01 - Freezer Compartment

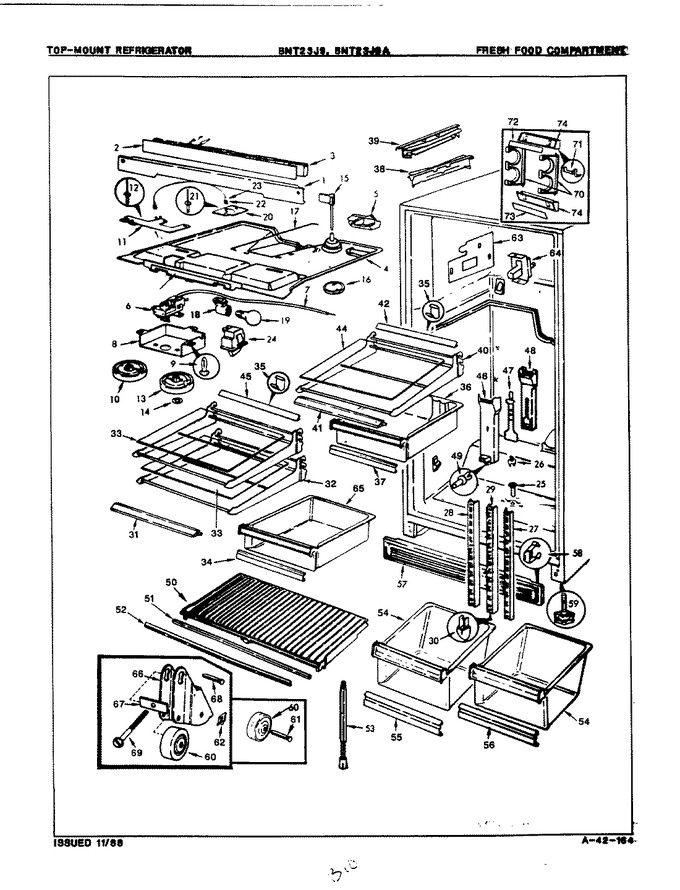

02 - Fresh Food Compartment


03 - Unit Compartment & System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9986-117		Screw		Appelez-nous	-
1	65797-3-AM		Divider, Mullion (alm)		Appelez-nous	-
1	65797-3-HW		Divider, Mullion (hw)		Appelez-nous	-
1	65797-3-WW		Divider, Mullion (wht)		Appelez-nous	-
2	60105-9		Heater Wire		Appelez-nous	-
3	60140-2		Insulation		Appelez-nous	-
3	60560-2		Wire Harness		Appelez-nous	-
4	60085-56		Top, F.f. Compartment		Appelez-nous	-
5	60120-2		Deflector		Appelez-nous	-
6	406013-1		Screw		Appelez-nous	-
6	WP68601-6		Control, Temperature   (Replaces: 66545-1)			Immediately	$ 233.80
7	60571-46		Insert		Appelez-nous	-
8	60083-1		Cover, Temperature Control		Appelez-nous	-
9	28013-2		Rivet, Air Tunnel		Appelez-nous	-
10	68162-1		Knob		Appelez-nous	-
11	60147-1		Bracket, Control		Appelez-nous	-
12	WP210720		Rivet   (Replaces: 26397-2)				$ 12.14
13	68162-3		Knob		Appelez-nous	-
14	420092-900		Washer, Spring		Appelez-nous	-
15	66609-1		Damper		Appelez-nous	-
16	60082-3		Crank, Frzr Control		Appelez-nous	-
17	60078-4		Rod, Frzr Control		Appelez-nous	-
18	60577-1		Socket, Light		Appelez-nous	-
19	40A15		Bulb, Light (40 Watt)   (Replaces: 31956)			Immediately	$ 1.98
20	60147-2		Bracket, Light Socket		Appelez-nous	-
21	WP210720		Rivet   (Replaces: 26397-2)				$ 12.14
22	29675-22		Ground Wire		Appelez-nous	-
23	29675-28		Ground Wire		Appelez-nous	-
24	W11384469		Switch, Light   (Replaces: 55732-1)			Immediately	$ 33.51
25	54531-8		Grommet		Appelez-nous	-
26	65039-1		Cap, Drain Tube		Appelez-nous	-
27	60096-7		Rail, Shelf Support (lt)		Appelez-nous	-
28	60096-8		Rail, Shelf Support (rt)		Appelez-nous	-
29	60096-9		Rail, Shelf Support (center)		Appelez-nous	-
30	60340-1		End Cap, Center Rail		Appelez-nous	-
31	60524-5		Trim		Appelez-nous	-
32	60570-11		Frame, Shelf		Appelez-nous	-
33	65598-44		Glass Shelf		Appelez-nous	-
34	60132-74		Handle		Appelez-nous	-
35	66333-1		Clip, Shelf Trim		Appelez-nous	-
36	66517-2		Pan, Meat		Appelez-nous	-
37	60132-74		Handle		Appelez-nous	-
38	66813-2		Slide Rail,meat & Deli Pan		Appelez-nous	-
39	66814-2		Rail, Meat Pan (rt)		Appelez-nous	-
40	60570-11		Frame, Shelf		Appelez-nous	-
41	60524-5		Trim		Appelez-nous	-
42	65276-7		Trim, Rear		Appelez-nous	-
43	65598-43		Glass Shelf		Appelez-nous	-
44	65598-43		Glass Shelf		Appelez-nous	-
45	65276-7		Trim, Rear		Appelez-nous	-
46	60094-12		Tunnel		Appelez-nous	-
47	60093-2		Damper, Air Tunnel		Appelez-nous	-
48	60092-1		Foam Insulator, Air Tunnel		Appelez-nous	-
49	28013-2		Rivet, Air Tunnel		Appelez-nous	-
50	66832-1		Shelf, Crisper		Appelez-nous	-
51	60454-3		Trim		Appelez-nous	-
52	60148-6		Seal		Appelez-nous	-
53	12001957		Support, Crisper Shelf   (Replaces: 66105-4)				$ 3.35
54	68223-405		Pan, Crisper		Appelez-nous	-
54	68223-404		Pan, Crisper		Appelez-nous	-
55	60132-73		Handle		Appelez-nous	-
56	60132-73		Handle		Appelez-nous	-
57	60138-8		Kickplate		Appelez-nous	-
57	WP489478		Screw   (Replaces: 400017-1)				$ 6.98
58	60100-1		Clip, Kickplate				$ 5.85
59	W11117769		Leg, Leveling   (Replaces: 6012-8)			Immediately	$ 16.61
60	29834-2		Wheel		Appelez-nous	-
61	29835-2		Pin, Wheel		Appelez-nous	-
62	60216-1		Clip		Appelez-nous	-
63	60583-1		Bracket, Switch		Appelez-nous	-
64	60585-1		Switch, Mullion Heater		Appelez-nous	-
64	9986-117		Screw		Appelez-nous	-
65	66518-1		Pan, Meat		Appelez-nous	-
66	59100-1		Bracket, Adjusting Wheel		Appelez-nous	-
67	59101-1		Tapping Plate, Wheel		Appelez-nous	-
68	64965-1		Pin, Wheel		Appelez-nous	-
69	406087-1		Bolt		Appelez-nous	-
70	56519-4		Rack, Wine		Appelez-nous	-
71	58057-1		Spring, Wine Rack		Appelez-nous	-
71	60319-3		Anchor		Appelez-nous	-
72	65753-3		Insert		Appelez-nous	-
73	WP489478		Screw   (Replaces: 400017-1)				$ 6.98
73	65753-7		Insert		Appelez-nous	-
74	65689-1		Support, Wine Rack		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
