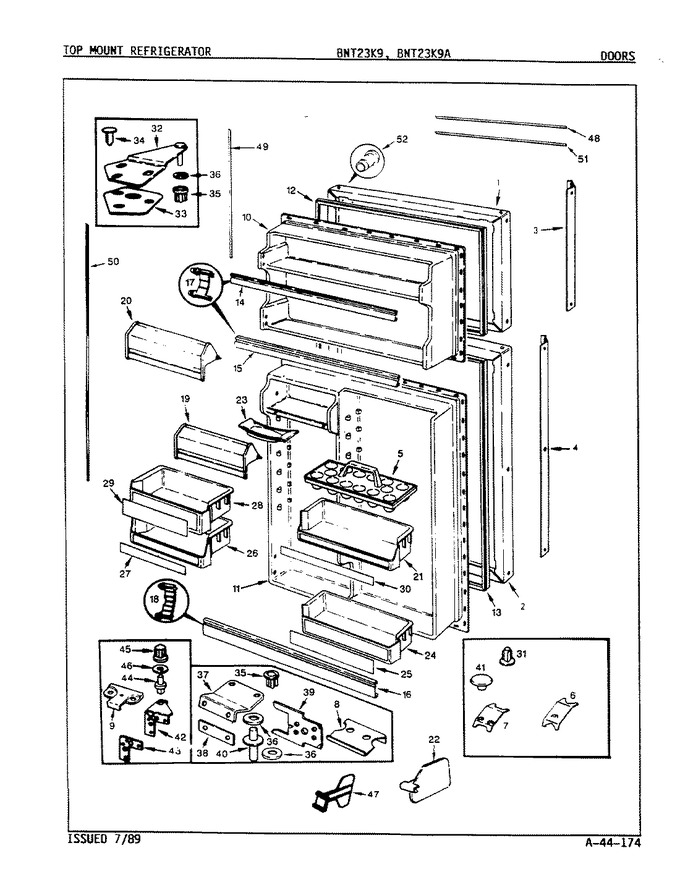

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	66996-3-AM		Panel, Frz. Door (alm)		Appelez-nous	-
2	RA95056-1		Door Insulation Kit		Appelez-nous	-
2	66997-1-AM		Panel, F.f. Door (alm)		Appelez-nous	-
3	66936-15		Handle		Appelez-nous	-
3	65275-4		Screw		Appelez-nous	-
4	66936-16		Handle		Appelez-nous	-
5	60066-1		Tray, Egg		Appelez-nous	-
6	56209-3		Clip, Stop Screw		Appelez-nous	-
7	60123-2		Clip, Stop Screw		Appelez-nous	-
8	60030-3		Door Stop		Appelez-nous	-
9	9986-108		Screw		Appelez-nous	-
9	60030-2		Door Stop		Appelez-nous	-
10	65936-4		Liner, Door		Appelez-nous	-
11	65275-5		Screw		Appelez-nous	-
11	66526-3		Inner Panel		Appelez-nous	-
12	66199-7		Gasket, Door		Appelez-nous	-
13	66199-8		Gasket, Door		Appelez-nous	-
14	WP61003045		Trim, Frz Dr Shelf   (Replaces: 68375-13)				$ 129.55
15	WP61003045		Trim, Frz Dr Shelf   (Replaces: 68375-13)				$ 129.55
16	68376-9		Trim, Door Shelf		Appelez-nous	-
17	WP65245-1		Retainer, Shelf Trim   (Replaces: 65245-1)				$ 9.39
18	65246-1		Retainer				$ 5.04
19	66184-364		Door, Dairy		Appelez-nous	-
20	66184-363		Door, Dairy (large)		Appelez-nous	-
21	60037-40		Door Shelf		Appelez-nous	-
22	66645-6		Organizer Package		Appelez-nous	-
23	29936-2		Tray, Butter		Appelez-nous	-
24	60037-39		Door Shelf		Appelez-nous	-
25	68130-65		Insert		Appelez-nous	-
26	60037-35		Door Shelf		Appelez-nous	-
27	68130-52		Insert		Appelez-nous	-
28	60037-37		Shelf, Pick-off		Appelez-nous	-
29	68130-56		Insert		Appelez-nous	-
30	68130-55		Insert		Appelez-nous	-
31	55782-6		Plug Button (almond)		Appelez-nous	-
32	65003-3		Cover, Upper Hinge (alm)		Appelez-nous	-
32	53709-18		Door Hinge, Upper		Appelez-nous	-
33	65031-1		Shim, Upper Hinge		Appelez-nous	-
34	56144-9		Plug Button, Hinge Screw (alm)		Appelez-nous	-
35	66036-1		Bushing,top/center Hinge		Appelez-nous	-
36	WP3-24838-048		Screw   (Replaces: 9986-87)				$ 7.00
36	WP52185-1		Washer   (Replaces: 52185-1)			Immediately	$ 9.47
37	60031-2		Door Hinge, Center		Appelez-nous	-
38	60034-1		Spacer, Center Hinge		Appelez-nous	-
39	WP3-24838-048		Screw   (Replaces: 9986-107)				$ 7.00
39	60622-1		Tapping Plate		Appelez-nous	-
40	60035-4		Pin, Center Hinge		Appelez-nous	-
41	56186-6		Plug Button, (almond)		Appelez-nous	-
42	60630-8		Door Hinge, Lower		Appelez-nous	-
42	403062-5		Screw		Appelez-nous	-
43	60626-1		Shim, Lower Hinge		Appelez-nous	-
44	53672-1		Pin, Lower Hinge		Appelez-nous	-
45	66034-1		Bushing, Lower Hinge				$ 19.76
46	54233-2		Washer		Appelez-nous	-
47	64097-11		Organizer, Shelf		Appelez-nous	-
48	66937-1		Perimeter Trim		Appelez-nous	-
49	66937-2		Perimeter Trim		Appelez-nous	-
50	66937-3		Perimeter Trim		Appelez-nous	-
51	400015-12		Screw		Appelez-nous	-
51	66937-4		Perimeter Trim		Appelez-nous	-
52	68381-1		Retainer, Nameplate Bezel		Appelez-nous	-
