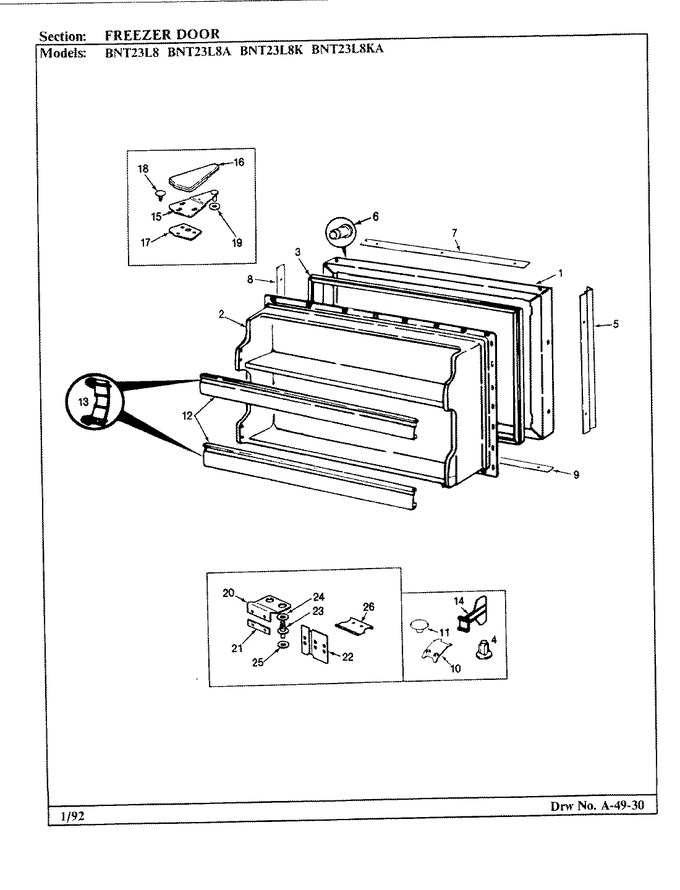

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	68476-10-WW		Panel, Frz. Door (wht)		Appelez-nous	-
1	RA95056-1		Door Insulation Kit		Appelez-nous	-
2	65936-4		Liner, Door		Appelez-nous	-
2	65275-5		Screw		Appelez-nous	-
3	66199-7		Gasket, Door		Appelez-nous	-
3	55782-10		Plug Button, Hdle & Door Stop		Appelez-nous	-
4	55782-10		Plug Button, Hdle & Door Stop		Appelez-nous	-
5	65275-4		Screw		Appelez-nous	-
5	66936-7		Handle Extruded		Appelez-nous	-
5	66936-11		Door Handle		Appelez-nous	-
5	66936-9		Handle, Frz Door		Appelez-nous	-
6	68381-1		Retainer, Nameplate Bezel		Appelez-nous	-
7	66937-1		Perimeter Trim		Appelez-nous	-
8	66937-2		Perimeter Trim		Appelez-nous	-
9	60319-4		Screw, Anchor		Appelez-nous	-
9	66937-4		Perimeter Trim		Appelez-nous	-
9	9986-117		Screw		Appelez-nous	-
10	60123-2		Clip, Stop Screw		Appelez-nous	-
11	67634-2		Plug Button, Hinge Cup (wht)		Appelez-nous	-
12	65151-289		Trim, Door Shelf		Appelez-nous	-
13	WP65245-1		Retainer, Shelf Trim   (Replaces: 65245-1)				$ 9.39
14	64097-11		Organizer, Shelf		Appelez-nous	-
15	53709-20		Hinge, Upper		Appelez-nous	-
15	WP3-24838-048		Screw   (Replaces: 65275-52)				$ 7.00
16	65003-6		Cover, Upper Hinge (wht)		Appelez-nous	-
17	65031-1		Shim, Upper Hinge		Appelez-nous	-
18	56144-13		Plug Button, Upper Hinge (wht)		Appelez-nous	-
19	54233-1		Washer				$ 7.71
20	68811-2		Hinge, Center		Appelez-nous	-
20	65275-55		Screw		Appelez-nous	-
21	68812-1		Shim, Center Hinge		Appelez-nous	-
22	68377-1		Tapping Plate, Center Hinge		Appelez-nous	-
23	67322-1		Pin, Center Hinge		Appelez-nous	-
24	67483-1		Washer, Center Hinge (upper)		Appelez-nous	-
25	54233-2		Washer		Appelez-nous	-
26	65275-48		Screw		Appelez-nous	-
26	68988-3		Stop, Door		Appelez-nous	-
