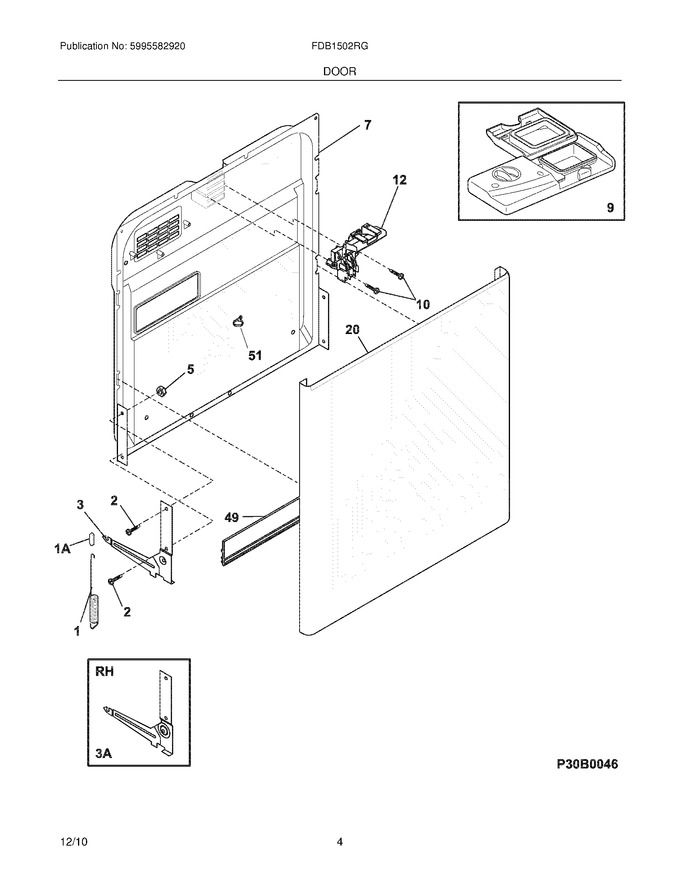

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
03 - Control Panel
05 - Door
07 - Tub
09 - Motor & Pump
11 - Frame
13 - Racks
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 154430501 | Spring,door ,(2) |
|
Immediately | $ 36.31 | ||||
| 2 | 154093301 | Screw,arm Assy ,(4) |
|
Immediately | $ 2.12 | ||||
| 3 | 5304513274 | Arm Assy,lh (Replaces: 154691401) |
|
Immediately | $ 66.56 | ||||
| 5 | 154079601 | Nut,arm Assy ,and Handle Mtg. |
|
$ 0.41 | |||||
| 7 | 154494601 | Liner,door Assy. |
|
$ 239.60 | |||||
| 9 | 5304506521 | Dispenser,det/rinse Aid ,w/o Reed (Replaces: 154542103) |
|
Immediately | $ 99.05 | ||||
| 10 | 154103702 | Screw-latch Mtg, (2) |
|
$ 13.46 | |||||
| 20 | 154597905 | Door Assy,stainless ,outer ,w/dampeners |
|
$ 321.72 | |||||
| 49 | 809006501 | Gasket,door ,bottom (Replaces: 154576501) |
|
Immediately | $ 36.22 | ||||
| 51 | 154320301 | Clamp,drip Loop ,wire |
|
$ 62.69 | |||||
| 1A | 154325201 | Linkage,door Spring ,(2) |
|
Immediately | $ 27.27 | ||||
| 3A | 5304513274 | Arm Assy,rh (Replaces: 154691301) |
|
Immediately | $ 66.56 | ||||
| F12 | A00099902 | Latch Assy,black (Replaces: 154556703) |
|
Immediately | $ 93.26 | ||||
| NI | 5304525214 | Shield,dispenser Assy (Replaces: 154719301) |
|
Immediately | $ 10.13 | ||||
| NI | 154294701 | Screw,no.7 Plas .375 ,(6) ,disp. Assy. |
|
$ 9.22 | |||||
| NI | 154686401 | Bearing,hinge Pin |
|
$ 10.63 | |||||
| NI | 154647101 | Hinge Pin,arm Assy |
|
$ 14.18 | |||||
| NI | 808326801 | Screw,ground ,no.8-18 X .375 (Replaces: 154409401) |
|
$ 2.84 | |||||
| NI | 154754701 | Screw,truss Hd ,8-18 Type Ab ,(2) |
|
$ 3.55 |
