01 - Freezer Compartment


02 - Freezer Door


03 - Fresh Food Compartment


04 - Fresh Food Door


05 - Unit Compartment & System


06 - Water & Ice Dispenser

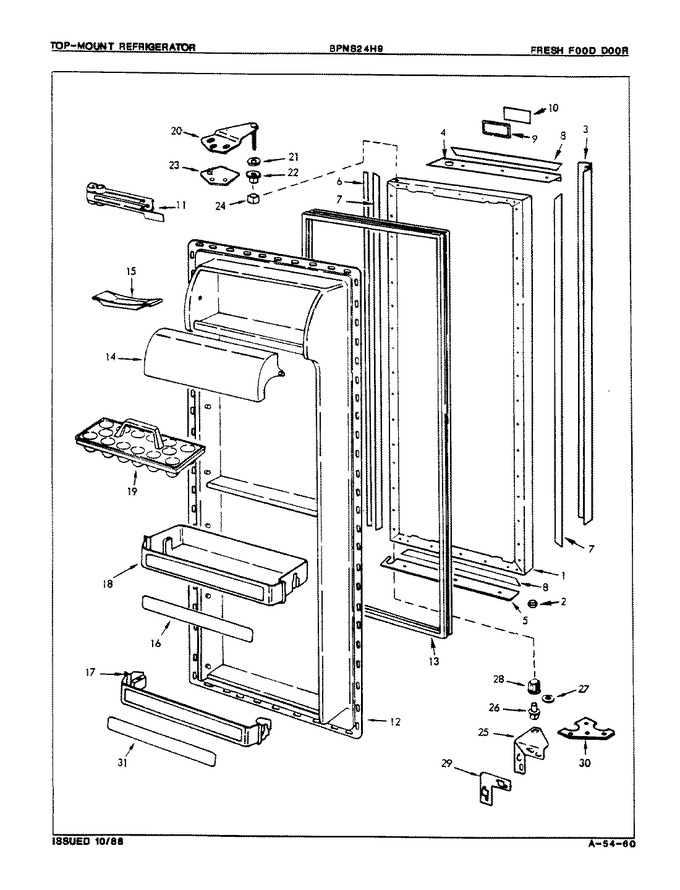

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	RA95060-1		Insulation Kit		Appelez-nous	-
1	53766-52-AM		Outer Panel		Appelez-nous	-
2	495034-900		Plug Button, Door		Appelez-nous	-
3	402100-1		Screw		Appelez-nous	-
3	66723-1		Clip		Appelez-nous	-
3	420063-1		Washer		Appelez-nous	-
3	64003-1		Handle		Appelez-nous	-
4	66000-1		Perimeter Trim		Appelez-nous	-
5	66001-1		Perimeter Trim		Appelez-nous	-
6	400015-12		Screw		Appelez-nous	-
6	66002-1		Perimeter Trim		Appelez-nous	-
7	58316-1		Retainer		Appelez-nous	-
8	58316-4		Retainer		Appelez-nous	-
9	66612-1		Nameplate		Appelez-nous	-
10	66724-1		Insert		Appelez-nous	-
11	52613-1		Insulation, Closer		Appelez-nous	-
11	54485-1		Closer, Door		Appelez-nous	-
11	52614-1		Bracket, Closer		Appelez-nous	-
12	65275-2		Screw		Appelez-nous	-
12	65995-2		Support		Appelez-nous	-
12	65995-1		Support		Appelez-nous	-
12	65943-8		Liner, Door		Appelez-nous	-
13	66929-2		Gasket		Appelez-nous	-
14	66184-430		Door, Dairy		Appelez-nous	-
15	29936-2		Tray, Butter		Appelez-nous	-
16	65571-28		Insert		Appelez-nous	-
17	65781-7		Shelf Front		Appelez-nous	-
18	65782-7		Shelf Front		Appelez-nous	-
19	60066-8		Tray, Egg		Appelez-nous	-
20	65003-3		Cover, Upper Hinge (alm)		Appelez-nous	-
20	WP3-24838-048		Screw   (Replaces: 9986-87)				$ 7.00
20	53709-16		Upper Hinge,(chrome)		Appelez-nous	-
21	WP52185-1		Washer   (Replaces: 52185-1)			Immediately	$ 9.47
22	66036-2		Bushing, Upper Hinge		Appelez-nous	-
23	65031-1		Shim, Upper Hinge		Appelez-nous	-
24	55990-1		Seal Sleeve		Appelez-nous	-
25	60630-12		Hinge, Lower		Appelez-nous	-
25	403062-5		Screw		Appelez-nous	-
26	53672-1		Pin, Lower Hinge		Appelez-nous	-
27	54233-1		Washer				$ 7.71
28	66034-1		Bushing, Lower Hinge				$ 19.76
29	60626-1		Shim, Lower Hinge		Appelez-nous	-
30	65964-1		Tapping Plate, Lower Hinge		Appelez-nous	-
31	65571-29		Insert		Appelez-nous	-
