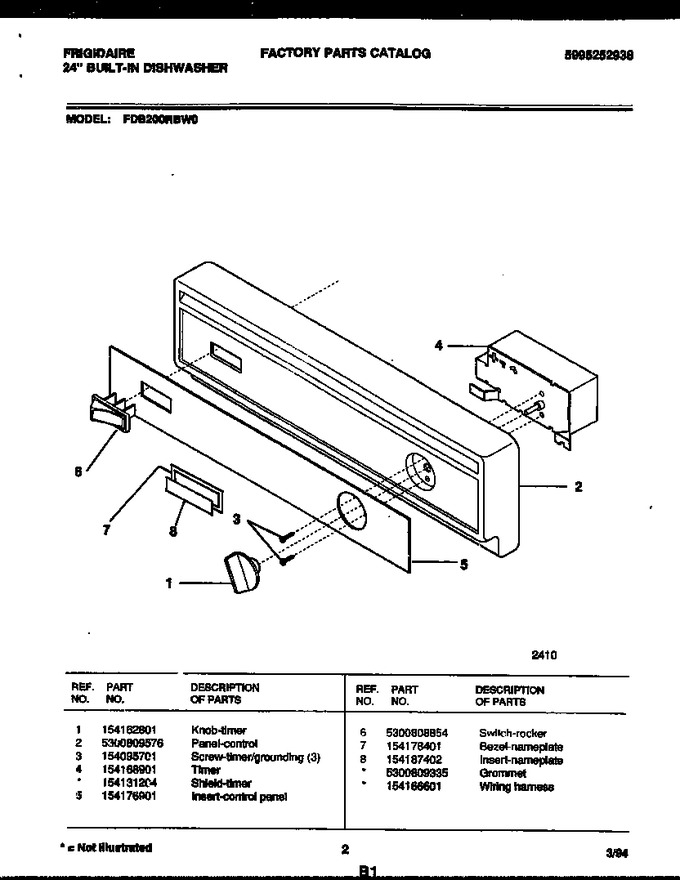

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 154162801 | Knob-timer |
|
$ 69.14 | |||||
| 2 | 5300809576 | Panel - Control |
|
- | |||||
| 3 | 154095701 | Screw-timer/grounding (3) |
|
$ 10.34 | |||||
| 4 | 154168901 | Timer |
|
$ 108.36 | |||||
| 5 | 154176901 | Insert-control Panel |
|
- | |||||
| 6 | 5300808854 | Switch - Rocker |
|
- | |||||
| 7 | 154178401 | Bezel-nameplate |
|
- | |||||
| 8 | 154187402 | Insert-nameplate |
|
- | |||||
| *96418 | 5300809335 | Grommet |
|
- | |||||
| *96418 | 154166601 | Wiring Harness |
|
- | |||||
| 4A | 154131204 | Shield-timer (non-illustrated) |
|
- |
