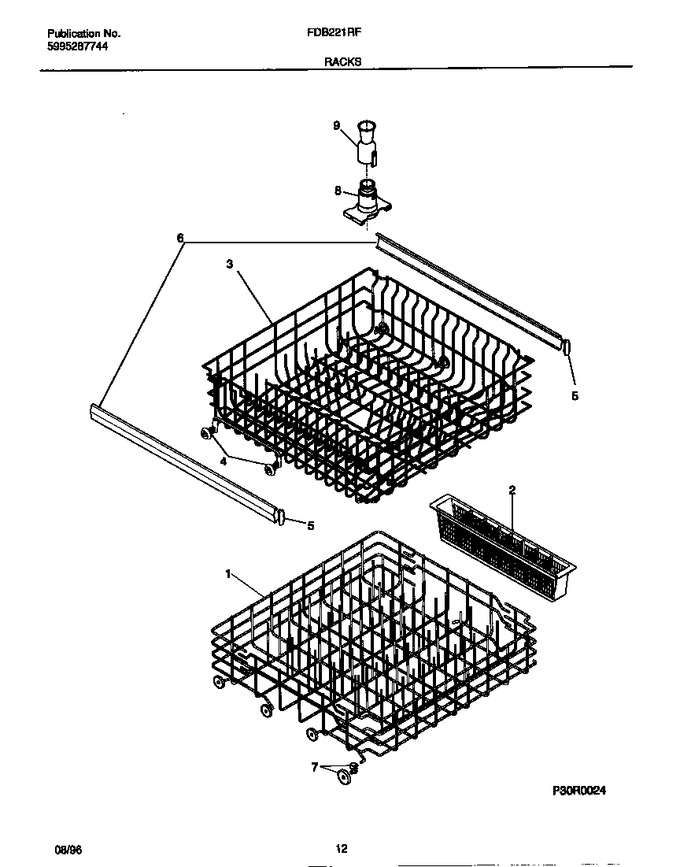

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 154207804 | Rack Assy-lower |
|
- | |||||
| 2 | 5304535382 | Basket-silverware (Replaces: 154253901) |
|
Immediately | $ 25.43 | ||||
| 3 | 154207604 | Rack Assy-upper |
|
- | |||||
| 4 | 5304535381 | Wheel & Bracket Assy, Upper Rack (Replaces: 5300809974) |
|
Immediately | $ 10.05 | ||||
| 5 | 5300809927 | Cap,slide ,(4) |
|
Immediately | $ 3.69 | ||||
| 6 | 154597801 | Slide,rack ,(2) (Replaces: 154232701) |
|
Immediately | $ 9.36 | ||||
| 7 | 5304532229 | Wheel & Bracket Assy,lower Rack (Replaces: 154174501) |
|
Immediately | $ 12.75 | ||||
| 8 | 154251901 | Base-funnel |
|
- | |||||
| 9 | 154251801 | Funnel |
|
$ 49.88 |
