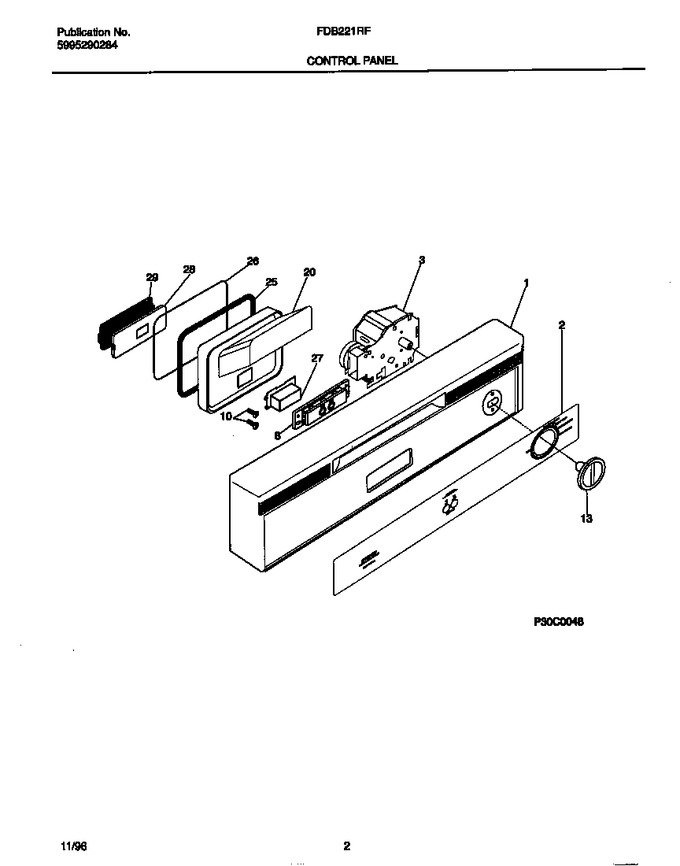

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	154222703		Panel-control		Appelez-nous	-
2	154235003		Insert-control Pnl, Black		Appelez-nous	-
3	154212301		Timer		Appelez-nous	-
8	154215001		Switch-selector, 2b Tap Touch		Appelez-nous	-
10	154779601		Screw-switch Mtg, (2)   (Replaces: 5303318719)				$ 1.42
13	154239503		Knob-timer				$ 44.52
20	154283701		Vapor Weldment Assy		Appelez-nous	-
25	154287301		Seal-chamber		Appelez-nous	-
26	154240501		O-ring, Vent Dr Liner				$ 29.19
27	154226701		Actuator,wax				$ 65.46
28	154226901		Valve-vent		Appelez-nous	-
29	154226401		Gasket-valve				$ 51.14
*62640	154131203		Shield-timer		Appelez-nous	-
*62641	154200501		Screw, Pan Plask, 6-10 X 7/16		Appelez-nous	-
*62642	154248601		Shield,switch		Appelez-nous	-
*62643	218180205		Bezel-nameplate		Appelez-nous	-
*62644	154291401		Harness-wiring		Appelez-nous	-
