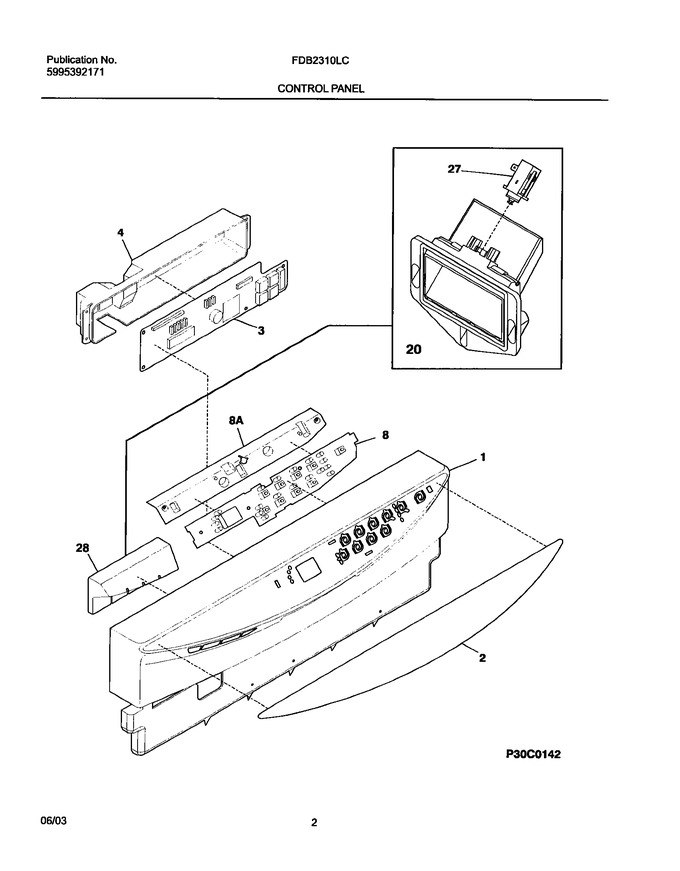

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	154454403		Panel,control ,black				$ 68.78
2	154475303		Insert,control Panel ,black		Appelez-nous	-
4	154460601		Cover,control		Appelez-nous	-
20	154423601		Vent Assy,active Dry ,w/actuator				$ 198.55
27	154433501		Actuator,active Dry Vent		Appelez-nous	-
28	154474401		Adapter,vent				$ 52.92
8A	154477601		Cover,switch		Appelez-nous	-
F3	154470603		Control,w/display				$ 429.82
F8	154475801		Switch,selector ,9 Pad W/display		Appelez-nous	-
NI	154399022		Label,energy Guide		Appelez-nous	-
NI	154200401		Screw, 6-10 X 3/8, Pan Plask				$ 8.56
NI	154477401		Gasket,cover		Appelez-nous	-
NI	154476601		Screw,pan Head ,6-19 X 1/4		Appelez-nous	-
NI	154436201		Screw,dry Duct ,(3)		Appelez-nous	-
NI	154476501		Wiring Harness		Appelez-nous	-
NI	154753101		Thermistor   (Replaces: 154227501)			Immediately	$ 24.80

    View Diagram in Separate Window       Print Part List
