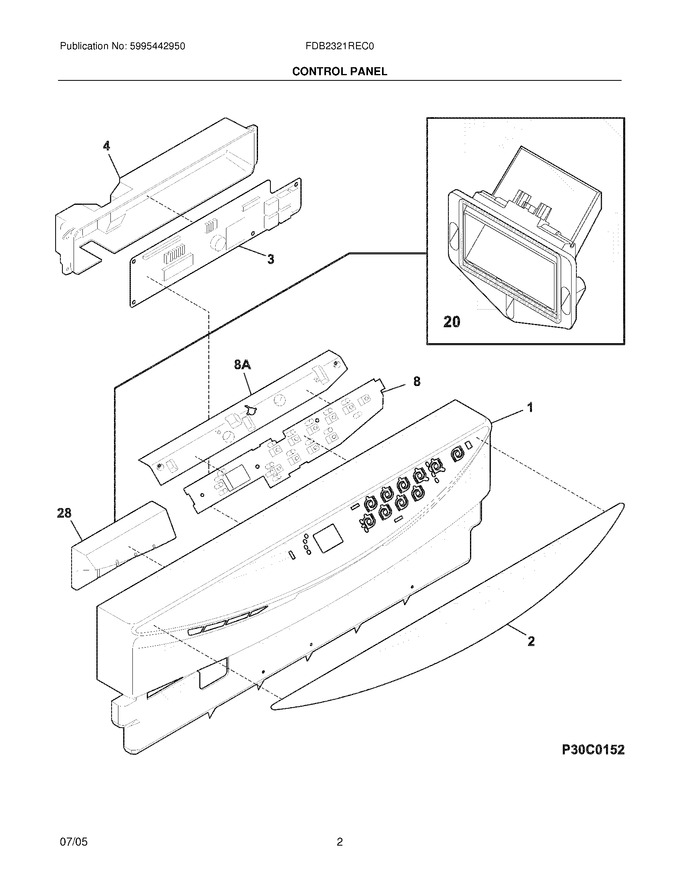

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	154486003		Panel,control ,black		Appelez-nous	-
2	154525403		Insert,control Panel ,black		Appelez-nous	-
4	154554601		Cover,control				$ 25.62
20	154433001		Vent Assy,static Dry				$ 50.82
28	154474401		Adapter,vent				$ 52.92
8A	154486201		Shield,tactile Switch				$ 49.56
F3	154470603		Control,w/display				$ 429.82
F8	154475801		Switch,selector ,9 Pad W/display		Appelez-nous	-
NI	154540018		Energy Guide Label		Appelez-nous	-
NI	154478901		Gasket,cover				$ 61.66
NI	154779601		Screw,mtg.   (Replaces: 5303318719)				$ 1.42
NI	154436201		Screw,dry Duct ,(3)		Appelez-nous	-
NI	154476401		Wiring Harness		Appelez-nous	-
NI	154753101		Thermistor   (Replaces: 154227501)			Immediately	$ 24.80
NI	154200401		Screw, 6-10 X 3/8, Pan Plask				$ 8.56

    View Diagram in Separate Window       Print Part List
