SELECT A DIAGRAM

01 - Cover


03 - Door/control Panel

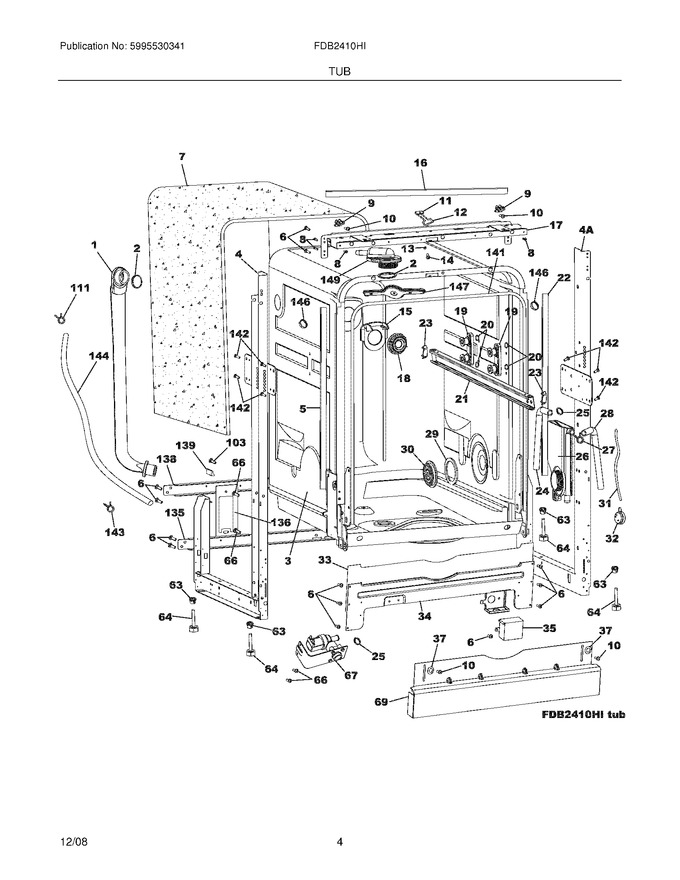

05 - Tub


07 - Motor & Pump


09 - Racks


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304470201		Hose,delivery ,external				$ 42.05
2	5304460950		O-ring,delivery Hose				$ 11.45
3	5304470202		Tub Assembly		Appelez-nous	-
4	5304470203		Frame,tub ,lh				$ 102.00
5	5304470206		Guard,tub Gasket ,black ,lh				$ 19.95
6	5304460955		Screw,tapping ,st3.5 X 9 ,(26)		Appelez-nous	-
7	5304470207		Insulation,tub Wrapper ,outer		Appelez-nous	-
8	5304460957		Rivet,(6)		Appelez-nous	-
9	5304460958		Block,tub ,(2)		Appelez-nous	-
10	5304460959		Screw,tapping ,st3.5 X 11 ,(2)		Appelez-nous	-
11	5304460960		Bracket,door Hook Mtg				$ 7.09
12	5304470208		Hook,door Lock				$ 10.23
13	5304470209		Nut,hook Mtg ,m4 ,lock				$ 3.60
14	5304460962		Screw,hook Mtg ,m4 X 16				$ 11.77
15	5304470210		Housing,delivery Hose ,inner		Appelez-nous	-
16	5304470212		Seal,cabinet ,black ,top				$ 17.85
17	5304470214		Crosspiece,front ,black ,upper		Appelez-nous	-
18	5304470215		Nut,delivery Hose ,inner				$ 11.55
19	5304470216		Roller Assembly,tub ,(4)				$ 30.48
20	5304460967		O-ring,tub Roller ,(8)				$ 8.18
21	5304460968		Rail,guide ,upper Rack ,(2)				$ 50.40
22	5304470218		Guard,tub Gasket ,black ,rh		Appelez-nous	-
23	5304470219		Cap,guide Rail ,(4)				$ 20.97
24	5304460969		Hose,drain Pump				$ 19.36
25	5304460970		Clamp,hose ,otk175 ,(5)				$ 13.46
26	5304470220		Tunnel,water				$ 28.93
27	5304460972		Clamp,hose ,14.9 X 1.8				$ 5.30
28	5304470221		Hose,inlet ,watre Tunnel		Appelez-nous	-
29	5304482394		Gasket,ring Nut   (Replaces: 5304460974)			Immediately	$ 13.74
30	5304470222		Nut,ring		Appelez-nous	-
31	5304470223		Tubing,pressure Switch				$ 14.81
33	5304470225		Insulation,crosspiece		Appelez-nous	-
34	5304470226		Crosspiece,front		Appelez-nous	-
35	5304470227		Box,junction				$ 12.77
37	5304461786		Washer,(2)		Appelez-nous	-
63	5304460980		Nut,leveling Leg ,(4)		Appelez-nous	-
64	5304460981		Leg,leveling ,(4)				$ 10.50
66	5304460930		Screw,hex Hd, Tapping ,st5 X 12 ,(6)		Appelez-nous	-
69	5304470249		Kickplate,black				$ 70.28
103	5304460984		Screw,m6 X 12 ,(3)		Appelez-nous	-
111	5304461002		Clamp,hose ,12.9 X 1.8				$ 5.67
135	5304470289		Crosspiece,back ,lower		Appelez-nous	-
136	5304460985		Bracket,motor Support		Appelez-nous	-
138	5304470290		Crosspiece,back ,upper		Appelez-nous	-
139	5304460986		Block,tub Gasket ,(2)				$ 10.97
141	5304470375		Gasket,tub				$ 84.05
142	5304460988		Screw,hex Hd, Tapping ,st5 X 20 ,(8)				$ 8.09
143	5304470296		Clamp,hose ,otk157		Appelez-nous	-
144	5304470297		Tube,sprayarm ,top				$ 26.59
146	5304470298		Cover,hole Plug ,(2)		Appelez-nous	-
147	5304470299		Sprayarm Assembly,upper				$ 21.00
149	5304470300		Nut,sprayarm ,upper				$ 11.08
4A	5304470204		Frame,tub ,rh		Appelez-nous	-
F32	5304470224		Switch,pressure				$ 77.16
F67	5304482406		Valve,water Inlet   (Replaces: 5304470247)			Immediately	$ 69.62

    View Diagram in Separate Window       Print Part List
