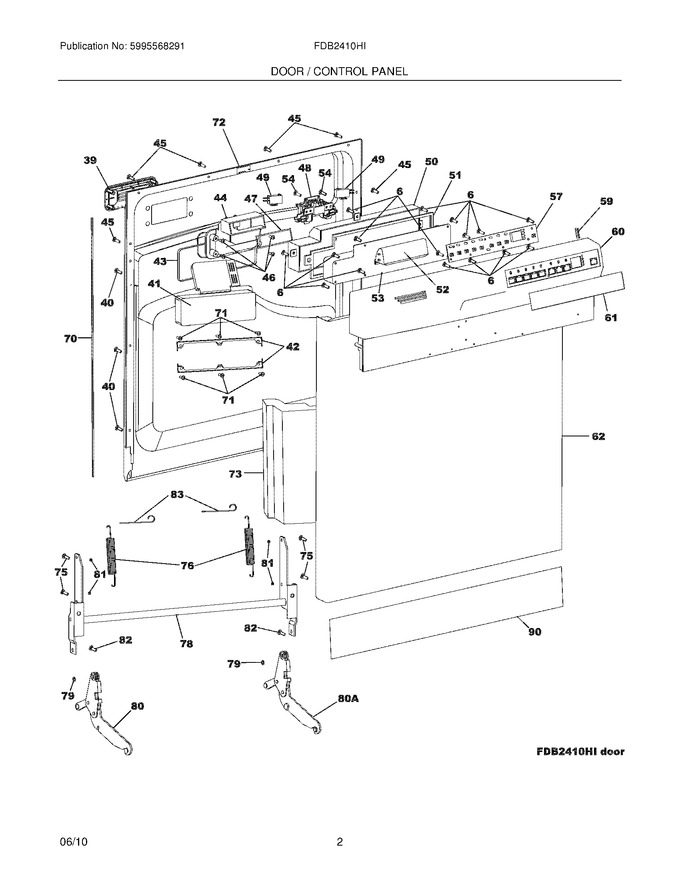

03 - Door/control Panel


05 - Tub


07 - Motor & Pump


09 - Racks


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
6	5304460955		Screw,tapping ,st3.5 X 9 ,(26)		Appelez-nous	-
39	5304470228		Cover,door Vent		Appelez-nous	-
40	5304460910		Screw,tapping ,st3.5 X 13 ,(6)		Appelez-nous	-
42	5304460912		Bracket,dispenser ,(2)		Appelez-nous	-
43	5304460913		Gasket,door Vent ,inner Door				$ 12.62
45	5304460915		Screw,tapping ,st3.5 X 18 ,(6)		Appelez-nous	-
46	5304460916		Screw,pan Hd, Tapping ,st4 X 12 ,(8)		Appelez-nous	-
47	5304470230		Gasket,door Vent				$ 10.88
50	5304470232		Cover,control Board				$ 21.55
51	5304470233		Gasket,cover		Appelez-nous	-
52	5304470235		Cover,handle ,black		Appelez-nous	-
54	5304470237		Screw,latch Mtg ,st3.5 X 12 ,(2)		Appelez-nous	-
59	5304470239		Lens,led Lights		Appelez-nous	-
60	5304470241		Panel,console ,black		Appelez-nous	-
61	5304470243		Overlay,console Panel ,black		Appelez-nous	-
62	5304470246		Door Panel,outer ,stainless				$ 231.68
70	5304460936		Guard,door Edge ,black ,(2)		Appelez-nous	-
71	5304460938		Screw,tapping ,m3.9 X 12 ,(6)		Appelez-nous	-
72	5304470251		Liner,door ,inner				$ 239.72
73	5304470252		Insualtion,door ,polystyrene		Appelez-nous	-
75	5304460941		Screw,m5 X 10 ,(4)				$ 9.56
76	5304470254		Spring,door ,(2)				$ 14.96
78	5304470255		Hinge Assembly,door		Appelez-nous	-
79	5304460944		Clamp,hinge Pin ,(2)				$ 5.15
80	5304470261		Hinge,arm ,lh				$ 56.39
81	5304460946		Nut,lock ,m5 ,(4)				$ 7.56
82	5304460947		Pin,hinge ,(2)				$ 3.26
83	5304460948		Bolt,door Spring ,(2)				$ 11.08
90	5304470262		Felt,door Sound ,inner		Appelez-nous	-
80A	5304470291		Hinge,arm ,rh				$ 56.39
F41	5304507354		Dispenser,det/rinse Aid ,w/read   (Replaces: 154542104)			Immediately	$ 77.60
F44	5304470229		Vent Assembly,door				$ 31.48
F48	5304535183		Latch,door   (Replaces: 5304460923)			Immediately	$ 16.22
F49	5304470231		Switch,door Latch ,(2)				$ 40.01
F53	5304470236		Board,control		Appelez-nous	-
F57	5304470238		Board,display				$ 233.94
FNI	5304470253		Harness,wiring ,main		Appelez-nous	-
NI	5304470302		Label,door ,inner		Appelez-nous	-
NI	5304470301		Energy Guide		Appelez-nous	-
