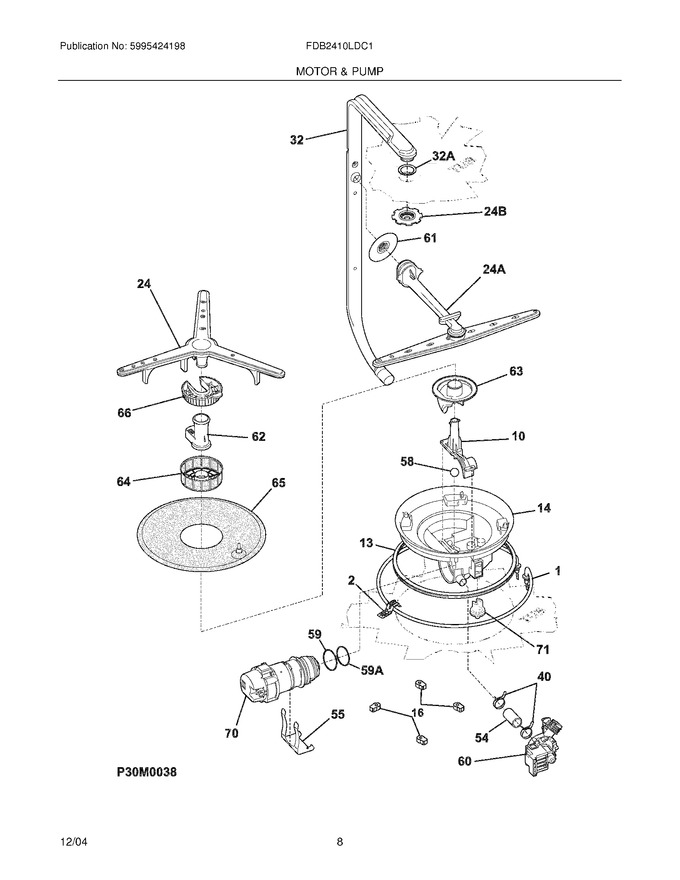

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	154465101		Bracket,heater ,(2)			Immediately	$ 11.34
10	807145201		Cover-volute   (Replaces: 154245501)			Immediately	$ 19.90
13	154246801		Gasket-sump				$ 52.17
14	154461902		Housing,sump				$ 311.85
16	154246502		Retainer, Sump			Immediately	$ 40.40
24	154608102		Spray Arm,grey ,lower   (Replaces: 154467702)			Immediately	$ 55.29
32	5304507087		Tube,delivery   (Replaces: 154464101)			Immediately	$ 60.53
40	154348502		Clamp,red ,pump				$ 9.41
40	154348401		Clamp,red ,pump				$ 32.96
54	154234401		Hose,connector				$ 68.68
55	5304534830		Bracket,motor ,askoll   (Replaces: 154362301)				$ 5.54
58	154246402		Check Ball			Immediately	$ 55.99
59	154246901		O-ring,rear			Immediately	$ 56.70
60	154580301		Pump,drain   (Replaces: 154491301)			Immediately	$ 80.76
61	5304532204		Grommet,delivery Tube   (Replaces: 154463402)			Immediately	$ 8.58
62	5304532235		Support,spray Arm ,grey ,lower   (Replaces: 154294102)			Immediately	$ 7.33
63	5304532205		Base,soil Director   (Replaces: 154252201)			Immediately	$ 13.74
64	5304532205		Filter,soil Director ,grey   (Replaces: 154252302)			Immediately	$ 13.74
65	154283005		Filter Assy,grey				$ 253.03
66	5304532206		Trap,glass ,grey   (Replaces: 154252702)			Immediately	$ 11.23
70	154859101		Motor & Pump Assy   (Replaces: 154523501)			Immediately	$ 318.47
71	154473901		Sensor,turbidity				$ 213.26
24A	A01986801		Spray Arm,grey ,center   (Replaces: 154468502)			Immediately	$ 188.39
24B	154520601		Nozzle,shower ,assembly		Appelez-nous	-
32A	154406401		Gasket,delivery Tube			Immediately	$ 15.46
59A	154247001		O-ring,front			Immediately	$ 56.70
F1	154825001		Heater,round   (Replaces: 154482901)			Immediately	$ 91.19
NI	154200601		Screw,no.10-16 X 3/8				$ 7.98
NI	154106202		Nut,heater ,(2)   (Replaces: 154106201)			Immediately	$ 18.32
NI	154289801		Shield-heater Terminal				$ 7.33
NI	154754901		Screw,retainer   (Replaces: 5304404947)			Immediately	$ 4.26
NI	154491101		Screw,delivery Tube				$ 3.62
NI	154611101		Clamp-hose,(2)   (Replaces: 154106801)				$ 12.05
NI	154380601		Clamp,hose ,(1)				$ 73.71
NI	5303316032		Screw,truss Ss ,8 .625				$ 10.45
NI	154779601		Screw,mtg.   (Replaces: 5303318719)				$ 1.42
NI	154376001		O-ring,turbidity				$ 7.71
