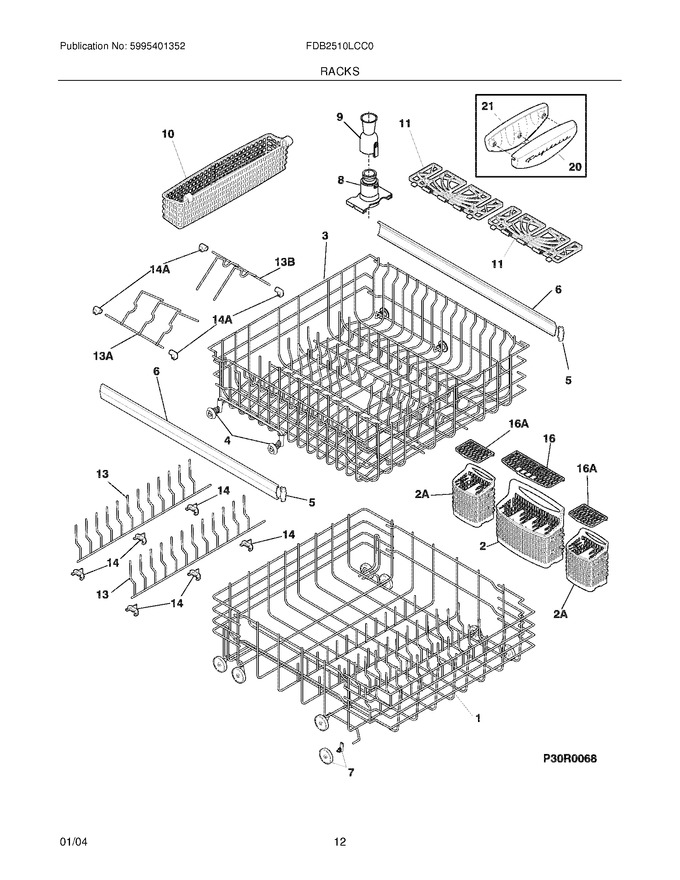

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304535768		Rack Assy,lower   (Replaces: 154432602)			Immediately	$ 162.61
2	154424001		Basket,silverware ,main		Appelez-nous	-
3	140229954072		Rack Assy,upper   (Replaces: 154319519)			Immediately	$ 145.13
4	154522902		Wheel & Bushing Assy,upper Rack   (Replaces: 5304407064)				$ 39.54
5	5300809927		Cap,slide ,(4)			Immediately	$ 3.69
6	154597801		Slide,rack ,(2)   (Replaces: 154232701)			Immediately	$ 9.36
7	5304532229		Wheel & Bracket Assy,lower Rack   (Replaces: 154174502)			Immediately	$ 12.75
8	154728001		Base-funnel   (Replaces: 154304001)				$ 27.03
9	154251801		Funnel				$ 49.88
10	154466901		Basket,utility ,white		Appelez-nous	-
11	154436101		Shelf,cup ,half Width ,white				$ 55.91
13	5304535768		Fence,fold Down ,lower Rack ,(2) ,full Length   (Replaces: 154425502)			Immediately	$ 162.61
14	154428402		Bracket,fold Down Fence ,lower Rack ,(6)   (Replaces: 154428401)			Immediately	$ 25.05
16	154424201		Cover,main Basket ,silverware				$ 36.38
20	154453101		Handle,pull ,front ,upper Rack				$ 38.96
21	154453201		Handle,pull ,rear ,upper Rack				$ 38.06
13A	154225403		Fence,multi,3 Wire ,upper Rack ,(1)				$ 57.07
13B	154225303		Fence,multi,2 Wire ,upper Rack ,(1)		Appelez-nous	-
14A	5304506508		Bracket,multi Fence ,white ,upper Rack ,(8)   (Replaces: 154242001)			Immediately	$ 5.79
16A	154424301		Cover,side Basket ,(2) ,silverware		Appelez-nous	-
2A	154424101		Basket,silverware ,(2) ,side		Appelez-nous	-
F14A	154242101		Bushing,multi Fence ,upper Rack ,(8)		Appelez-nous	-
