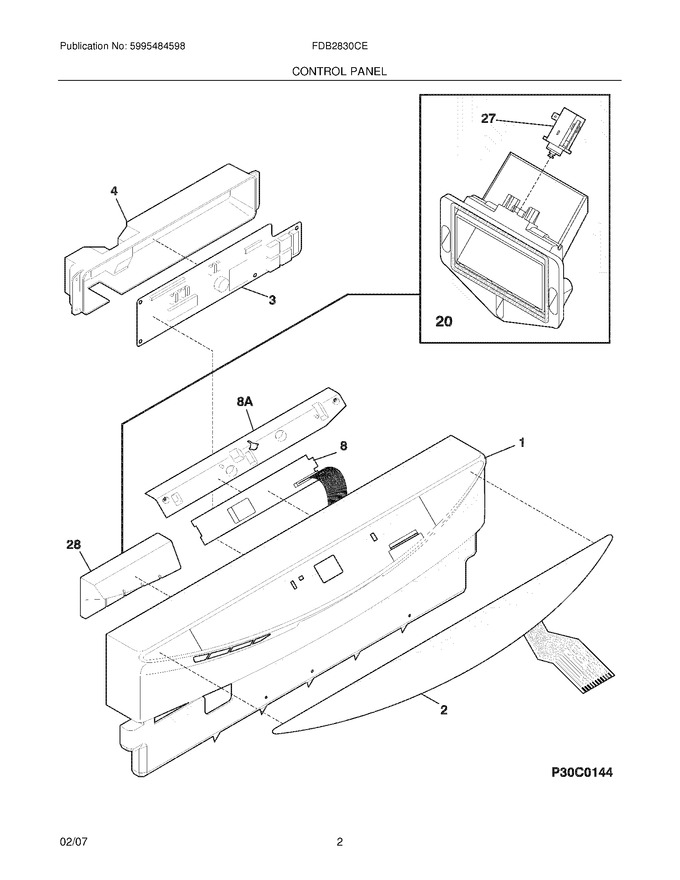

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	154568603		Insert,control Panel ,12 Pad ,black				$ 363.14
3	154520901		Board,control				$ 412.12
4	154554601		Cover,control				$ 25.62
8	154474801		Board,segment Display				$ 164.48
20	154423601		Vent Assy,active Dry ,w/actuator				$ 198.55
27	154433501		Actuator,active Dry Vent		Appelez-nous	-
28	154474401		Adapter,vent				$ 52.92
8A	154486201		Shield,tactile Switch				$ 49.56
F1	154486103		Panel,control ,black		Appelez-nous	-
NI	154779601		Screw,mtg.   (Replaces: 5303318719)				$ 1.42
NI	154436201		Screw,dry Duct ,(3)		Appelez-nous	-
NI	154478901		Gasket,cover				$ 61.66
NI	154200401		Screw, 6-10 X 3/8, Pan Plask				$ 8.56
NI	154606001		Harness,wiring ,main		Appelez-nous	-
NI	154540025		Energy Guide Label		Appelez-nous	-
NI	154283901		Screw,no.8-10 ,3/8 Phillips				$ 7.56

    View Diagram in Separate Window       Print Part List
